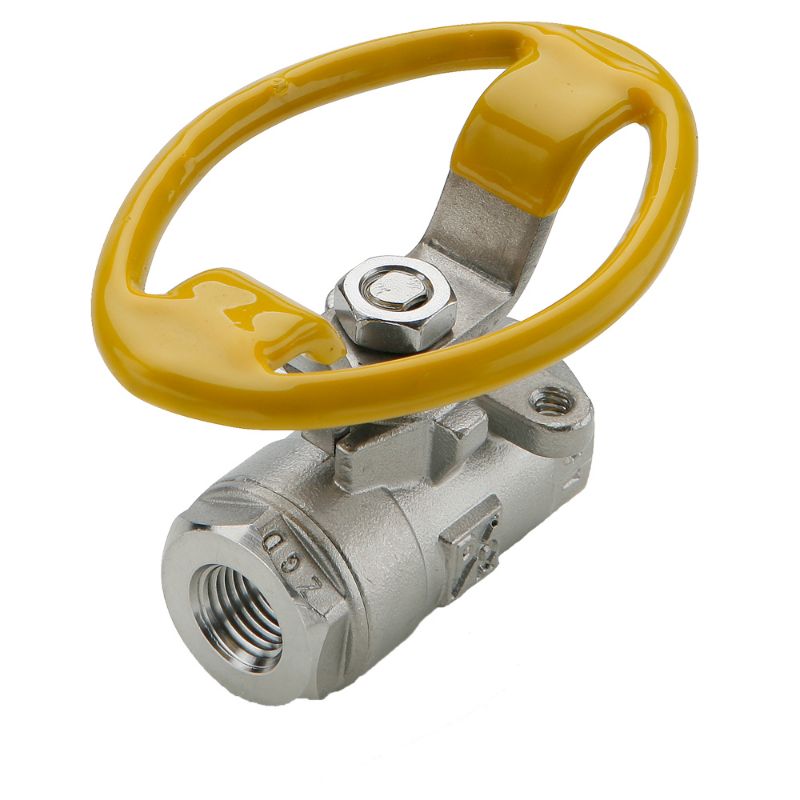

Parker V502SS-12-21 - Industrial Ball Valves - Stainless Steel

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. V502SS-12-21

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Vacuum Pressure Rating	28
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Type	NPT	Maximum Operating Temperature	400
Connection Size	3/4	Function	2-Way
Actuation Type	Manual	Maximum Operating Pressure	2000
Product Type	Ball Valve	Maximum Flow Rate	35
Seat Material	Stainless Steel	Operation Type	n/a
Mounting Type	Panel	Body Material	CF-8M Stainless Steel
Shape	Panel Mount	Handle Type	Oval
Ball Material	PTFE	Specifications Met	NACE MR-01-75
Orifice Size	.787	Configuration	Female NPT
Connection 1 Thread Size (inch)	3/4	Connection 2 Thread Size (inch)	3/4
Locking Mechanism	Non-Locking	Style	Female Pipe Ends
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Shape	Panel mount	Handle	Stainless Steel Oval
