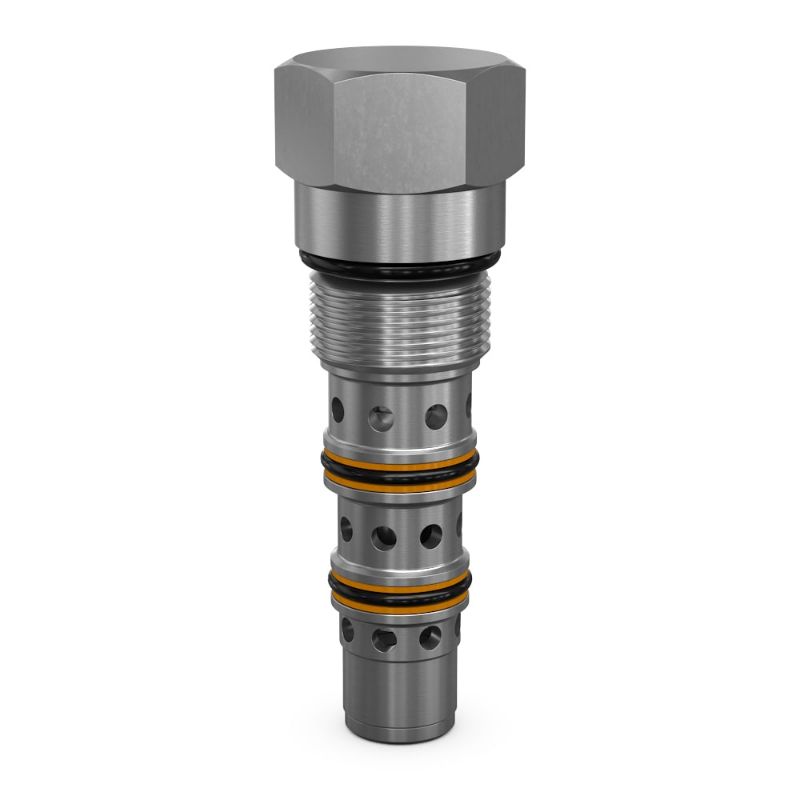

Parker K04C3-0.0V - Cartridge Spool Type Shuttle Valves with All Ports Closed

REGIONAL - Parker's 3-position, 3-way spool type closed center shuttle valves are available in two cavity sizes and provide high performance pilot control; capable of flows up to 175 lpm (46 gpm) and 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K04C3-0.0V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Standard Flow Rate Setting	15	Division	Mobile Hydraulic Systems Division Europe
Installation Torque	37	Switching Pressure	0
Configuration	3-way Spool Type	Function	Shuttle
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Valve Material	All parts steel. All operating parts hardened steel
Body Material	n/a	Maximum Flow Rate	26
Operating Temperature	-15 to +400	Actuation Type	Pressure Sensing
Flow Rate	26	Seal Material	Fluorocarbon
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Inlet Pressure Rating	6000
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Leak Rate	100 @ 1450 PSI (100 BAR)
Cavity Size	C10-4	Maximum Operating Temperature	+400
Maximum Operating Pressure	6000	Minimum Operating Temperature	-15
Weight	0.37	Operation Type	Spring Centered, All Parts Closed
Switching Pressure	0 PSI, 0 BAR	Flow Rate	26 GAL/MIN, 100 L/MIN
Seal Material	Fluorocarbon
