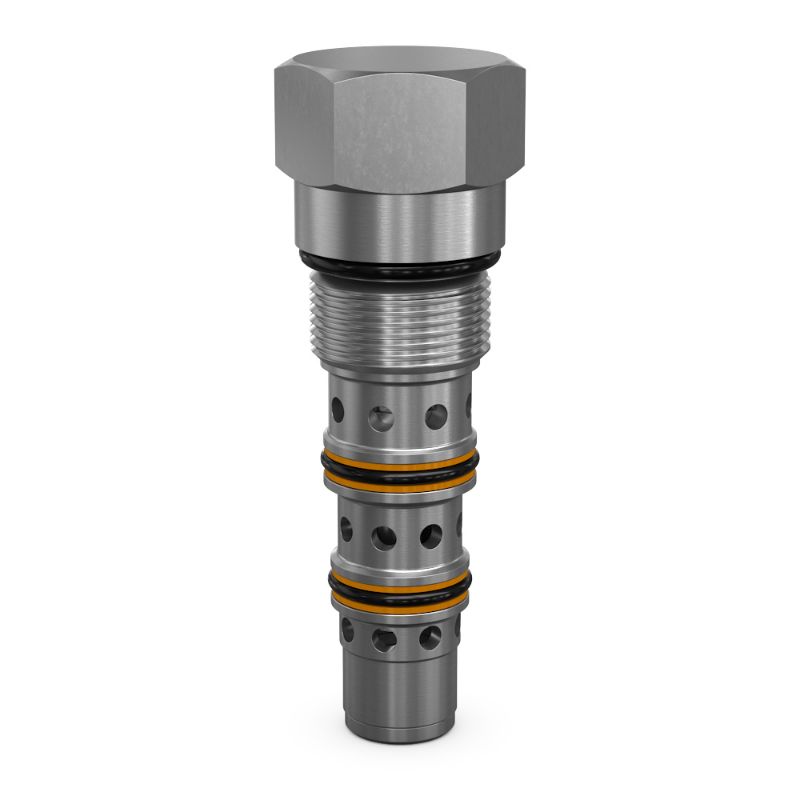

Parker K04F3-0.0N - Cartridge Spool Type Shuttle Valves with All Ports Open

REGIONAL - Parker's 3-position, 3-way spool type open center shuttle valves are available in two cavity sizes and are pilot controlled. These shuttle valves are capable of flows up to 100 lpm (26 gpm) and 420 bar (6000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K04F3-0.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-34 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Temperature	+250 °F
Leak Rate	n/a	Operating Temperature	-34 to +121 °C
Cavity Size	C10-4	Switching Pressure	0 psi
Maximum Flow Rate	26 Gal/min	Flow Rate	100 L/min
Maximum Inlet Pressure Rating	420 bar	Division	Mobile Hydraulic Systems Division Europe
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Function	Shuttle
Operation Type	Spring Centered, All Parts Open	Maximum Operating Pressure	420 bar
Configuration	3-way Spool Type	Standard Flow Rate Setting	55 L/min
Valve Material	All parts steel. All operating parts hardened steel	Installation Torque	50 Nm
Body Material	n/a	Weight	0.17 kg
Actuation Type	Pressure Sensing	Seal Material	Nitrile
Seal Material	Nitrile	Switching Pressure	0 PSI, 0 BAR
Flow Rate	26 GAL/MIN, 100 L/MIN
