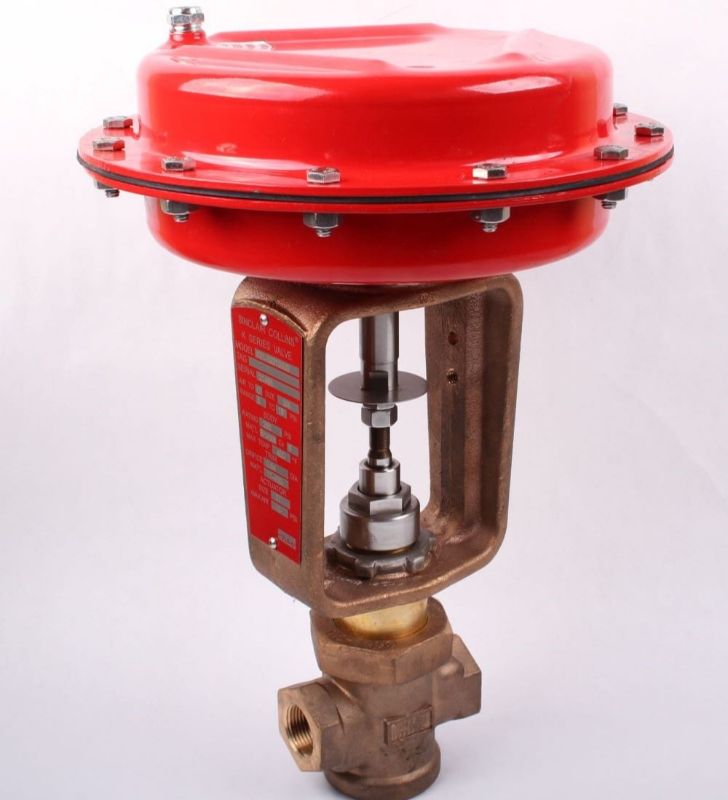

Parker K02-22012000 - Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Process Control Valves

Parker 2-Way Sinclair Collins K Series, Normally Closed, 1/2" Valves are suited for applications requiring higher media temperatures. Constructed of durable bronze or 316 stainless steel, these high performance valves are fully tested prior to shipping

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. K02-22012000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	2-Way	Maximum Pressure Differential	250 psi
Maximum Pilot Pressure	35 psi	Actuator Size	64
Maximum Fluid Temperature	400 °F	Flow Coefficient 1	6 Cv
Media	Valves for steam, air, neutral gasses and liquids	Weight	27 lb
Minimum Fluid Temperature	-40 °F	Actuation Type	Pneumatic Operated
Number of Ports	2	Port Type	NPTF
Port Size	1/2 inch	Division	Fluid Control Division
Function	Normally Closed	Body Material	Bronze
Product Series	Sinclair Collins K Series	Flow Characteristic	Equal%
Seal Material	Stainless Steel	Orifice 1 Size	0.84 inch
Body Material	Bronze	Actuator Size	64
Flow Characteristic	Equal%

Product resources

Literature and Reference Materials

Sinclair Collins K Series Process Control Valves (PDF)
