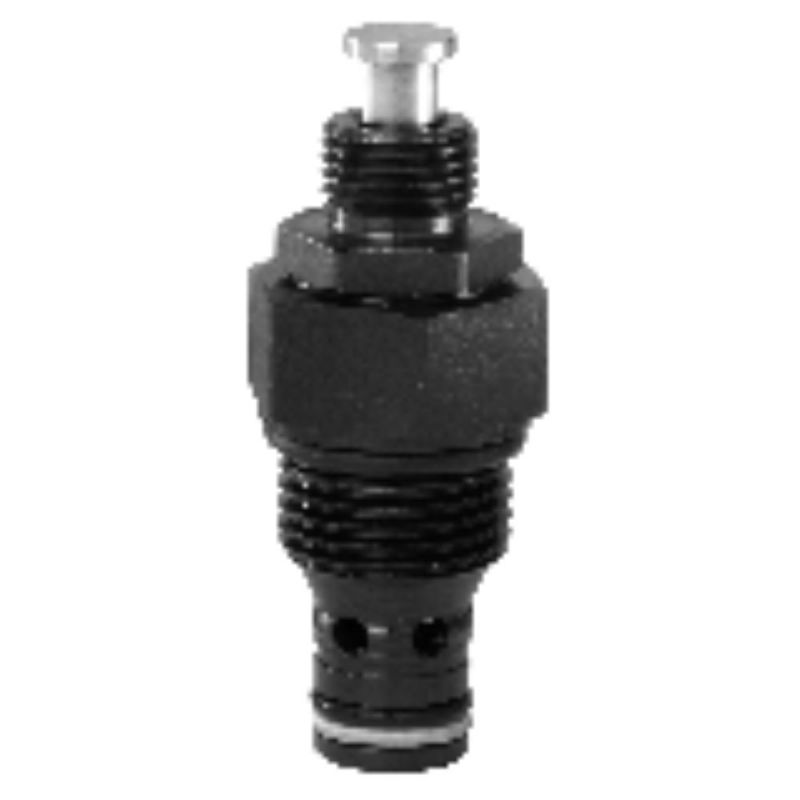

Parker GM021210V - 2 Position, 2 Way Normally Open Poppet Type Manual Valve

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GM021210V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Weight	0.31
Operation Type	Manual	Cavity Size	C08-2
Maximum Inlet Pressure Rating	5000	Flow Rate	12
Maximum Flow Rate	12	Configuration	Normally Open
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Operating Temperature	-15 to +400	Maximum Operating Temperature	+400
Function	Poppet Type	Leak Rate	5 @ 3000 PSI (210 BAR)
Maximum Tank Pressure	500	Detents	Yes
Installation Torque	20	Actuation Type	Button (push)
Seal Material	Fluorocarbon	Configuration	Normally Open
Flow Rate	12 GAL/MIN, 45 L/MIN	Actuation Type	Button (push)
