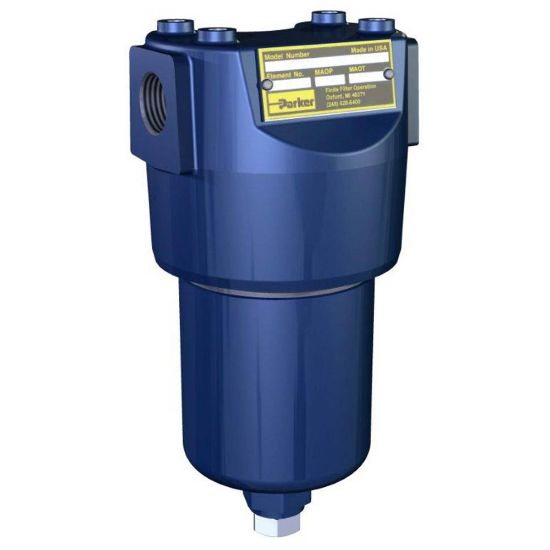

Parker JN1A-4CN - Finite J-Series High Pressure Compressed Air & Gas Filters

Parker’s Finite J-Series filters are designed to filter contaminants such as rust, pipe scale, compressor lube oil, and water from compressed gases. These filters are often used in high pressure Compressed Natural Gas (CNG) systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. JN1A-4CN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Finite	Bowl Type	Steel
Seal Material	Fluorocarbon	Optional Accessories	Horizontal Drain Kit 5000 PSIG (JDK5000H), Vertical Drain Kit 5000 PSIG (JDK5000V), Differential Pressure Gauge and Bracket (BDPI-25)
Maximum Operating Temperature	350 °F	Compatible Element	4CJAK
Maximum Operating Pressure	5000 psig	Head Material	Spheroidal Graphic Cast Iron
Plating Type	Nickel Plated	Weight	9 lb
Division	Industrial Gas Filtration and Generation Division	Drain Port Size	SAE 6
Coating	Epoxy Powder Paint	Filter Rating (%)	99.995
Maximum Flow Rate (cfm)	655 at 5000 PSI	Thread Type	NPT
Filter Type	Coalescer	Port Connection	1/4"
Micron Rating (µm)	0.01
