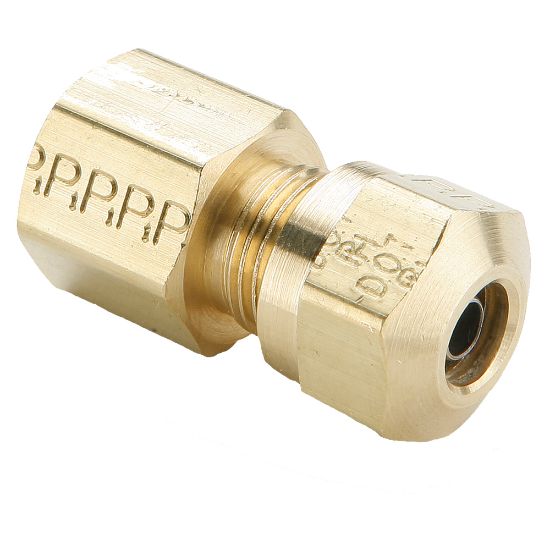

Parker 66NTA-10-8 - Air Brake D.O.T. Compression Style Fittings for J844 Tubing - NTA

Parker's NTA compression style air brake fittings meet D.O.T. FMVSS 571.106 specifications and the functional requirements of SAE J246 and SAE J1131.

Availability:	Quote Required
Partner Available:	30 In Stock

Brand Parker

Part No. 66NTA-10-8

$40.42

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Thread Sealant Material	Vibra-Seal 516	Maximum Operating Pressure	150 psi
Tube Material	Stainless Steel	Application	Air Brake, Accessories
Body Material	Brass	Nut Material	Brass
Minimum Operating Temperature	-40 °F	Specifications Met	DOT FMVSS 571.106, SAE J1131, SAE J246
Sleeve Material	Brass	Maximum Operating Temperature	93 °C
Connection 2 Style	Female Pipe	Connection 3 Style	na
Shape	Connector	Style	Tube to Female Pipe
Connection 1 Tube O.D. (inch)	5/8	Connection 2 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	1/2	Connection 3 Thread Size (inch)	na
Connection 1 Style	Compression
