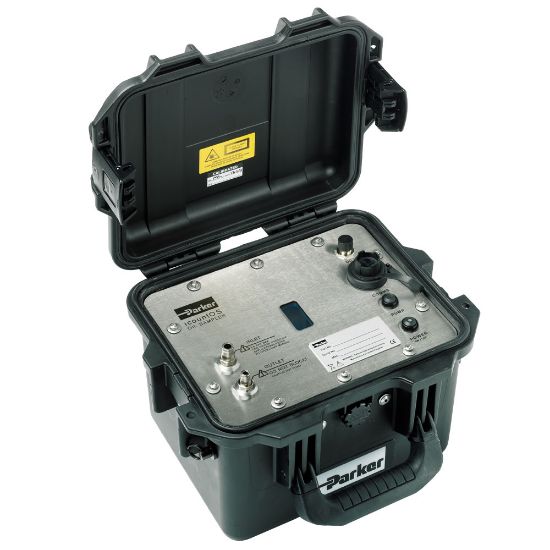

Parker IOS2120US - Portable Particle Monitor – iCountOS

The iCountOS is a highly rugged portable particle size monitor that can be used for measuring contamination levels in fuels and/or hydraulic fluids. Capable of operation online (direct connection to system) or offline (sampling from tank or reservoir).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. IOS2120US

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	Metric	Technology	Filtration
Body Material	Brass	Division	Hydraulic & Industrial Process Filtration Division EMEA
Division	Hydraulic & Industrial Process Filtration Division EMEA	Seal Material	Fluorocarbon
Industry	Off-road Machinery	Product Type	Condition Monitor
Outlet Connection Size	4	Flow Rate	60
Port Size	M16	Product Style	Particle Detector/Counter
Sensing Method	Laser	Ingress Protection Rating	IP54
Weight	5.5	Minimum Ambient Temperature	-40
Inlet Connection Size	6	Cycle Time	30
Signal Output	RS232	For Fluid Type	Petroleum-based Fuel
Calibration Type	MTD	Operating Pressure	35 to 5000
Specifications Met	IP68	Operating Temperature	-30 to 80
Width	299	Height	195
Length	248	Accuracy	+/- 1 ISO code
Operating Humidity	5 to 100% (RH)	Communication Interface	RJ45 LAN Cable
Electrical Requirements	12V Rechargeable Battery	Materials of Construction	Storm Case
Maximum Fluid Temperature	176	Minimum Fluid Temperature	41
Maximum Ambient Temperature	176	Maximum Kinematic Viscosity	300
Electrical Connection	US	Fluid Type	Mineral-based Oils, Petroleum-based Fuel
Connection Style	Online	Communication Interface	RJ45 LAN Cable

Product resources

Compliance, Certifications & Safety

SAFETY-iCountOS-Declaration-of-Conformity (PDF)

Literature and Reference Materials
