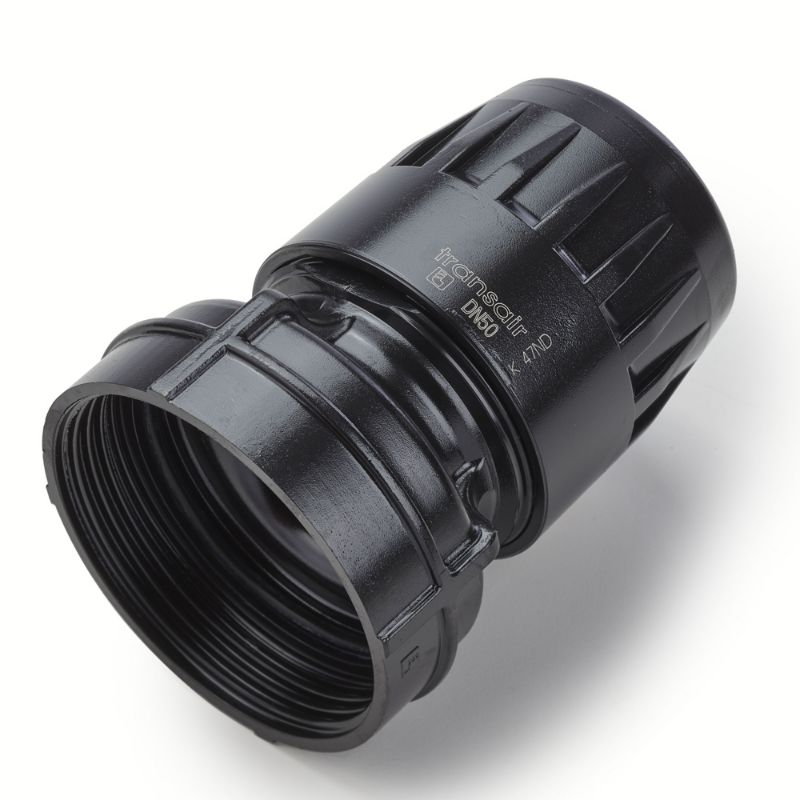

Parker 6666 50 63 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 6666 50 63

$87.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Pipe
Specifications Met	ISO 9001	Shape	Plug-In Reducer
Product Style	Plug-in Fitting	Minimum Operating Temperature	-4 °F
Division	Low Pressure Connectors Europe Division	Application	Compressed Air
Product Type	Compressed Air Piping	Brand	Parker
Industry	General Industrial	Weight	1.15 lb
Maximum Operating Pressure	232 psi	Division	Low Pressure Connectors Europe Division
Assembly Time	0.06 Hours	Maximum Operating Temperature	85 °C
For Fluid Type	Air	Vacuum Pressure Rating	1 mbar
Connection 2 Size	63 mm	Configuration	Pipe to Swivel Port
Connection 1 Size	2 inch	Body Material	Technical Polymer
Connection 2 Type	Pipe	Technology	Fluid & Gas Handling
Quantity per Box	1	Pipe O.D. (mm)	50
Pipe O.D. (inch)	2	Connection Thread Size (inch)	n/a
Silicone Free	Yes	Product Style	Pipe
Pipe O.D. 2 (mm)	63	Pipe O.D. 2 (inch)	2-1/2
