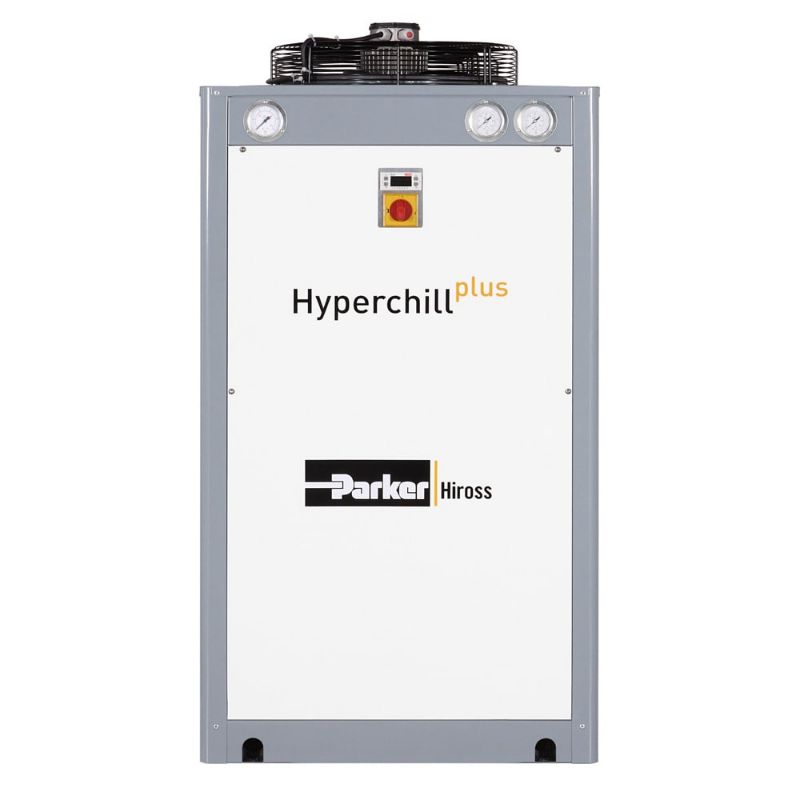

Parker ICEP003-WAFP3T0000001 - Hyperchill Plus - Industrial Water Chiller for Precision Cooling of Low Viscosity Industrial Cooling Fluids

This product is no longer available, please refer to Hyperchill Plus-E 50Hz Range instead.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ICEP003-WAFP3T0000001

Products specifications

Attribute name	Attribute value
Product Series	Hyperchill Plus	Industry	Electronics
Brand	Hiross	Tank Capacity	15 L
Number of Axial Fans	1	Width	29.7 inch
Ambient Temperature	118.4	For Fluid Type	Water
Division	Gas Separation and Filtration Division EMEA	Height	801 mm
Refrigerant Type	R407C	Ingress Protection Rating	IP33
Depth	21.1 inch	Technology	Thermal and Power Management
Port Size	3/4 inch	Compressor Included	Hermetic Piston
Operating Temperature	41 to 86 °F	Product Style	Pressurized Closed Hydraulic Circuit
Division	Gas Separation and Filtration Division EMEA	Application	Precision Cooling of Low Viscosity Industrial Cooling Fluids
Product Type	Production Process Water Chiller	Specifications Met	PED 97/23/EC
Port Type	Threaded	Weight	176 lb
Pump Type	Single Pump 3 bar	Cooling Method	Air Cooled / Axial Fans
Water Sensor Option	No Low Water	Additional Protection Included	Without Antifreeze
Options	No Options Selected	Hydraulic Circuit	With Tank
Operating Environment	No Low Ambient	Output Water Temperature Range	Without Close Control
Kit Type	Ambient Manual Fill Kit	Power Supply Voltage	230V/1Ph/60Hz
Maximum Cooling Capacity	3.3 kW @ 25°C (63°F)
