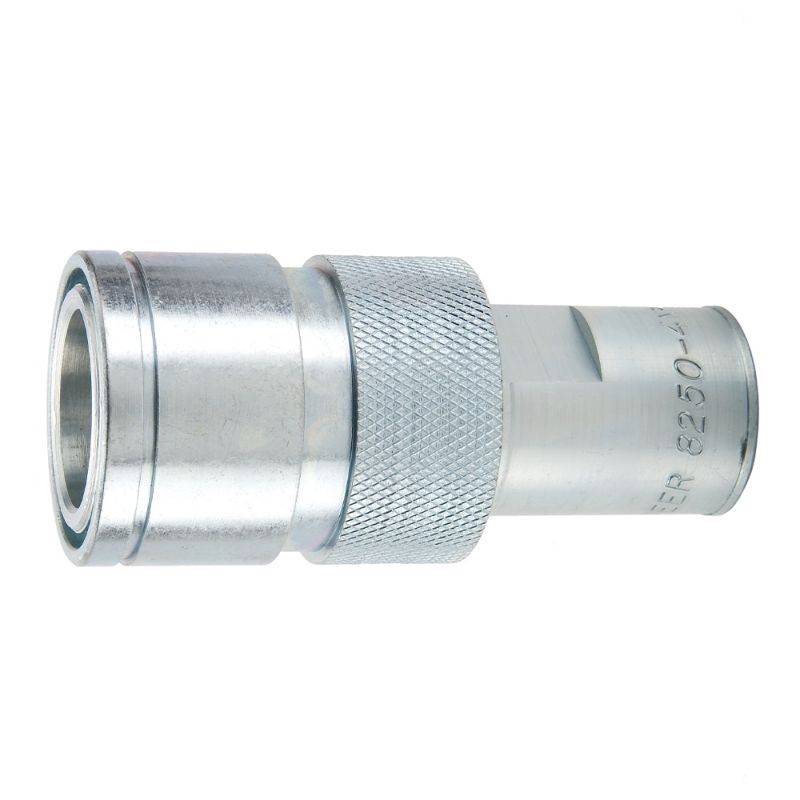

Parker 8250-16 - Pioneer Agricultural, Connect Under Pressure Quick Couplers, Breakaway Sleeve (ISO 5675) - 8200 Series

Parker's connect under pressure, agricultural quick couplers and nipples are the farmers choice where fluid lines require fast and easy connection and disconnection, featuring a sleeve designed to accomodate bracket/bulkhead mounting.

AFP Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. 8250-16

$85.58/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Hydraulics
Specifications Met	ISO 5675	Maximum Operating Pressure	3000 psi
Body Material	Steel	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Temperature	250 °F	Sleeve Type	Push-pull Breakaway
Seal Material	Nitrile	Thread Size	Female
Lock Type	Locking balls	Body Size	1/2 inch
Minimum Operating Temperature	-40 °F	Valve Type	Connect Under Pressure
Media	Hydraulic	Division	Quick Coupling Division
Coupling Half	Coupler	Flow Rate	12 Gal/min
Connection Type	ORB	Connection Thread Size (inch)	7/8 - 14
