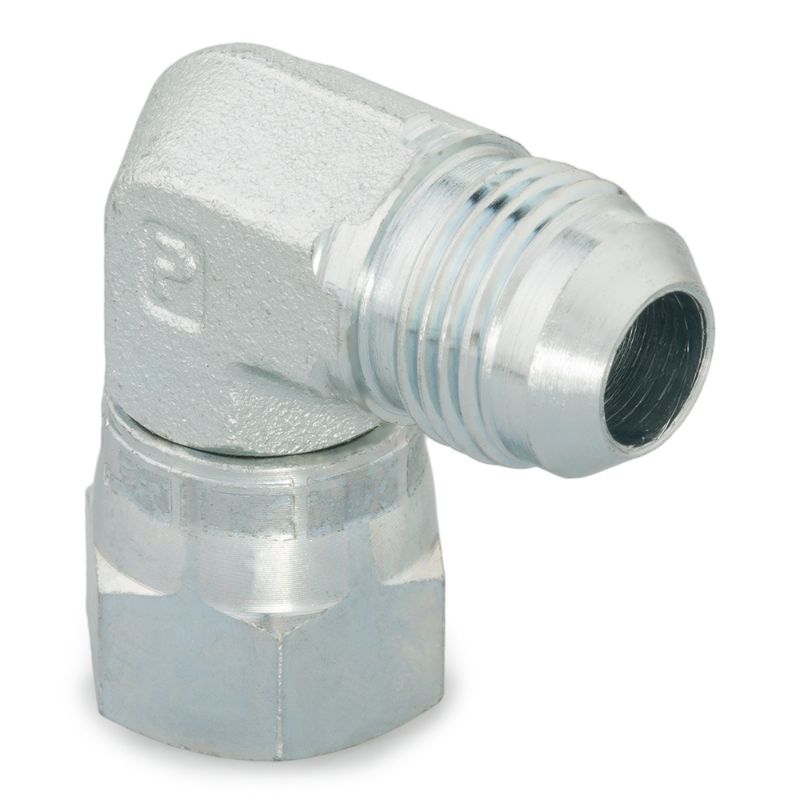

Parker 10 C6X-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 C6X-SS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 C6X-SS
Price: 118.09 USD
Availability: LimitedAvailability

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

1 Limited Stock

Norfolk, VA

Partner Available:

12 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 C6X-SS

$118.09/each

Qty:

Products specifications

Attribute name	Attribute value
Connection 2 Thread Size	na	Shape	90° Elbow
Connection 1 Size	Male 37° Flare	Body Material	Stainless Steel
Maximum Dynamic Pressure	5000 psi	Connection 4 Size	na
Specifications Met	SAE J514	Connection 3 Size	na
Connection 2 Tube Outside Diameter	14, 15, 16 mm	Connection 3 Tube Outside Diameter	na
Connection 2 Size	Female 37° Flare Swivel	Dimensional Weight	0.12464028776978417 lb
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 4 Tube Outside Diameter	na	Connection Type	Tube to Tube
Division	Tube Fittings Division	O-Ring Material	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
