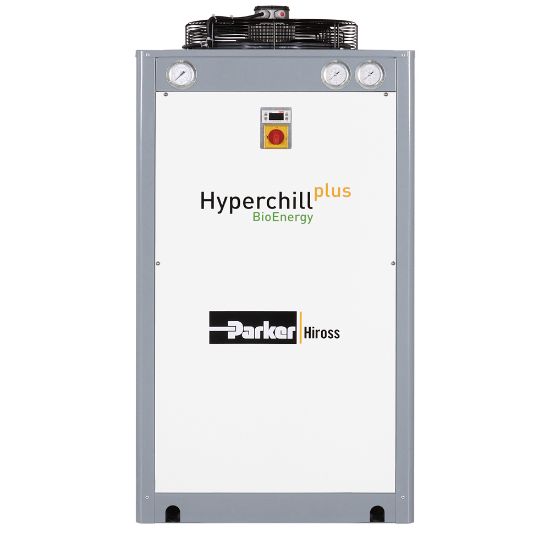

Parker ICE150B4003501P15FF000000 - Hyperchill BioEnergy Water Chiller for Biogas and Landfill Gas Cooling Applications

Specially designed for Biogas applications to ensure an accurate control of water temperature.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ICE150B4003501P15FF000000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	BSPP	Division	Gas Separation and Filtration Division EMEA
Division	Gas Separation and Filtration Division EMEA	Port Size	2-1/2 inch
Brand	Hiross	Refrigerant Type	R407c
Operating Temperature	41 to 86 °F	Product Style	Pressurized Closed Hydraulic Circuit
Product Type	Production Process Water Chiller	Technology	Thermal and Power Management
Ambient Temperature	113	Compressor Included	Hermetic Scroll
Application	Precision Cooling of Biogas Cooling Fluids	Product Series	Hyperchill BioEnergy
Cooling Method	BioEnergy & Aggressive Ambients	Depth	118.1 inch
Width	1287 mm	Height	90.5 inch
Noise Level	62 dBA	Tank Capacity	1000 L
Number of Axial Fans	2	Water Sensor Option	No Low Water
Power Supply Voltage	400V/3Ph/50Hz	Additional Protection Included	Without Antifreeze
Kit Type	Not Applicable	Options	No Options Available
Pump Type	Single Pump 1.5 bar	Hydraulic Circuit	With Tank
Operating Environment	No Low Ambient	Output Water Temperature Range	Without Close Control
Maximum Cooling Capacity	149.2 kW @ 25°C (63°F)
