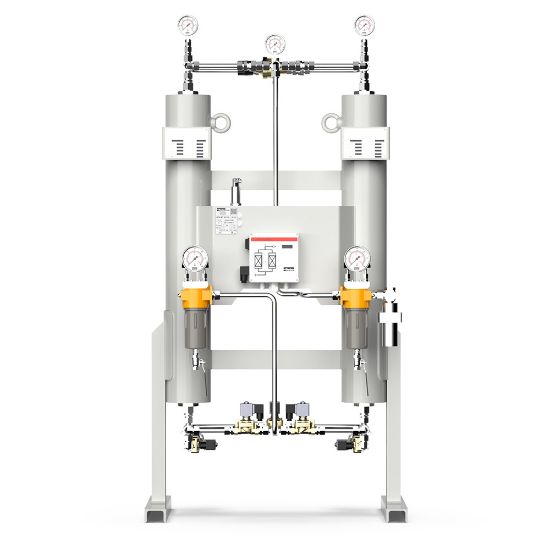

Parker H18/50D0-G230M - HDK Series High Pressure Compressed Air Dryer (up to 50 bar g)

For applications requiring high pressure compressed air or nitrogen gas up to 50 barg (725 psig) with volume flows up to 1180m³/h (695 cfm)and pressure dew point options of -25, -40°C and -70°C.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H18/50D0-G230M

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	PED, others on request	Compatible Prefilter	G3/50XP-15G
Depth	400 mm	Maximum Ambient Temperature	50 °C
Product Type	High Pressure Adsorption	Minimum Operating Pressure	4 barg
Weight	65 kg	Minimum Ambient Temperature	1 °C
Division	Gas Separation and Filtration Division EMEA	Minimum Operating Temperature	25 °C
Electrical Requirements	230V, 50-60Hz, others on request	Maximum Operating Temperature	122 °F
Brand	Zander	Maximum Flow Rate	29.43 CFM at 362.59 psig, PDP to 104°F
Maximum Operating Pressure	725.19 psig	Width	675 mm
Compatible After Filter	G3/50V-15G	Height	925 mm
Pressure Dew Point	-13 to -97 °F	Ingress Protection Rating	65
Connection Type	BSP-P	Maximum Flow Rate	50m³/h @ 50 bar g, 35°C
Port Size	1/2"	Controller Type	Multitronic
