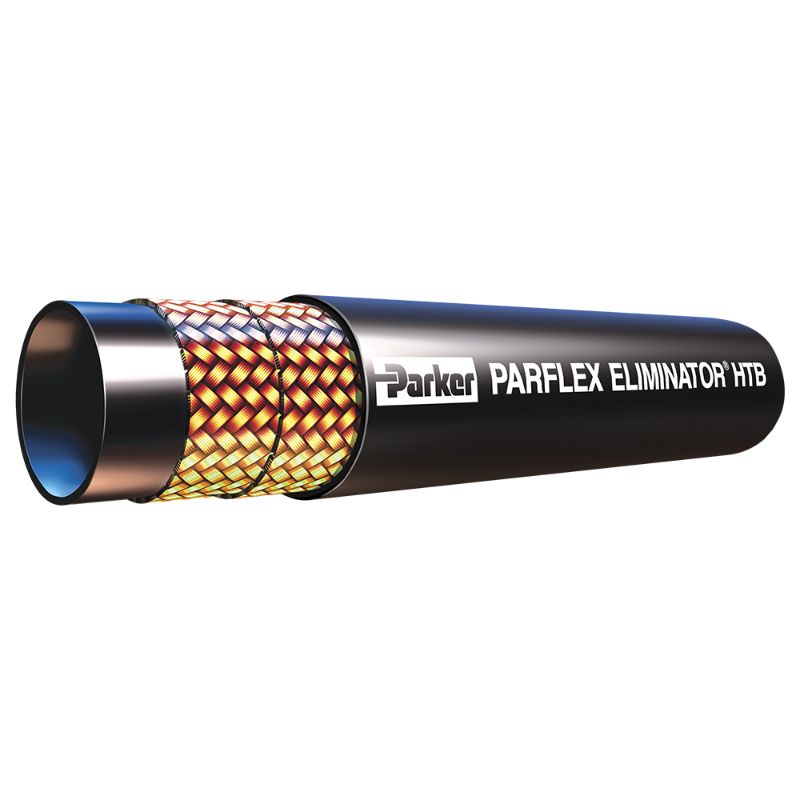

Parker HTBR16-250 - OBSOLETE: MSHA Hydraulic Hose - HTB/HTBR

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HTBR16-250

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Hydraulics	Outside Diameter	36.8 mm
Minimum Bend Radius	12 inch	Weight	1.36 kg/m
Inside Diameter	25 mm	Hose Reinforcement Material	2 Braids of High Tensile Wire
Size	-16	Media	Lubricants (Oils)
Compatible Fitting	43 Series	Specifications Met	MSHA
Minimum Operating Temperature	-40 °F	Cover Material	Synthetic Rubber
Maximum Operating Temperature	100 °C	Hose Inner Tube Material	Copolyester
Division	Parflex Division	Design Factor	4:1
Cover Structure	Smooth	Maximum Operating Pressure	241 bar
Length	250 ft	Length	250 ft
Hose I.D. (inch)	1
