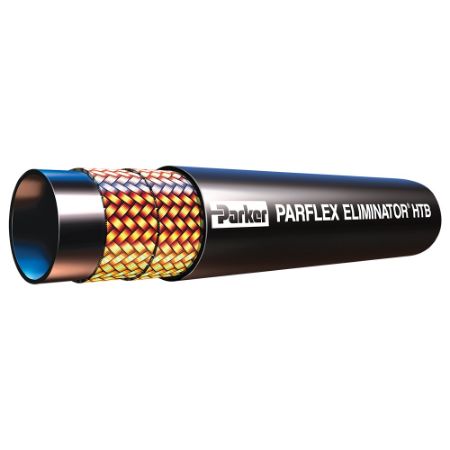

OBSOLETE: MSHA Hydraulic Hose - HTB/HTBR
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
HTB Eliminator® Hydraulic Hose is designed to create four-wire spiral hose performance in a two-wire braid construction, offering superior flexibility and performance for high pressure hydraulic applications. The durable thermoplastic core provides the cleanest fluid conveyance available and a wide range of chemical compatibility. The durable rubber jacket is MSHA approved and UV and ozone resistant.
Markets:
• Mobile Equipment
• Industrial
• Marine
Features/Benefits:
• 3,500 psi to 5,500 psi working pressures
• Up to 40% lighter than comparable rubber hoses
• Combination of high pressure capability, more compact O.D. and low force to flex covers wider range of fluid compatibility and applications
• UV and Ozone resistant cover prevents ozone degradation, cracking, abrasion and moisture ingression
• Compact O.D. and low force to flex covers a wider range of applications while increasing ease of installation
•Low length change under pressure that eliminates delays and does not elongate under pressure
Applications:
• General hydraulic applications
• Lubricating Oils
• Construction Equipment
• Lubricating Oils
• Agriculture Equipment
• Waste Refuse
Certifications/Compliance:
• MSHA Compliant Cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Mobile Equipment
• Industrial
• Marine
Features/Benefits:
• 3,500 psi to 5,500 psi working pressures
• Up to 40% lighter than comparable rubber hoses
• Combination of high pressure capability, more compact O.D. and low force to flex covers wider range of fluid compatibility and applications
• UV and Ozone resistant cover prevents ozone degradation, cracking, abrasion and moisture ingression
• Compact O.D. and low force to flex covers a wider range of applications while increasing ease of installation
•Low length change under pressure that eliminates delays and does not elongate under pressure
Applications:
• General hydraulic applications
• Lubricating Oils
• Construction Equipment
• Lubricating Oils
• Agriculture Equipment
• Waste Refuse
Certifications/Compliance:
• MSHA Compliant Cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Compatible Fitting | Hose Reinforcement Material | Application | Minimum Operating Temperature | Media | Cover Material | Specifications Met | Hose Inner Tube Material | Division | Cover Structure | Weight | Length | Design Factor | Inside Diameter | Maximum Operating Pressure | Minimum Bend Radius | Maximum Operating Temperature | Size | Outside Diameter | Length | Hose I.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HTB04 | Quote Required | TBD | HY Series | 2 Braids of High Tensile Wire | Agriculture Equipment | -40 | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.27 | View Part Details. | 4:1 | 1/4 | 7000 | 4 | 212 | -4 | 0.620 | Obsolete | 1/4 | |||
| HTB04-250 | Quote Required | TBD | FT | HY Series | 2 Braids of High Tensile Wire | Agriculture Equipment | -40 | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.27 | 250 | 4:1 | 1/4 | 7000 | 4 | 212 | -4 | 0.620 | Obsolete | 1/4 | ||
| HTBR06 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Agriculture Equipment | -40 | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.33 | View Part Details. | 4:1 | 3/8 | 5500 | 6 | 212 | -6 | 0.720 | random lengths | 3/8 | |||
| HTBR06-250 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Marine | -40 °F | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.50 kg/m | 250 ft | 4:1 | 3/8 inch | 5500 psi | 6 inch | 212 °F | -6 | 18.2 mm | 250 ft | 3/8 | |||
| HTBR08 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Agriculture Equipment | -40 | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.43 | View Part Details. | 4:1 | 1/2 | 5000 | 7 | 100 | -8 | 0.850 | random lengths | 1/2 | |||
| HTBR08-250 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Industrial Machinery | -40 °C | Petroleum Hydraulic Fluids | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.43 lb/ft | 250 ft | 4:1 | 1/2 inch | 34.4 MPa | 178 mm | 212 °F | -8 | 0.850 inch | 250 ft | 1/2 | |||
| HTBR10 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Agriculture Equipment | -40 | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.52 | View Part Details. | 4:1 | 5/8 | 4000 | 8 | 212 | -10 | 1.010 | random lengths | 5/8 | |||
| HTBR10-250 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Marine | -40 °F | Petroleum Hydraulic Fluids | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.52 lb/ft | 250 ft | 4:1 | 5/8 inch | 27.5 MPa | 8 inch | 212 °F | -10 | 25.6 mm | 250 ft | 5/8 | |||
| HTBR12 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Agriculture Equipment | -40 | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 1.07 | View Part Details. | 4:1 | 3/4 | 4000 | 9-1/2 | 212 | -12 | 1.170 | random lengths | 3/4 | |||
| HTBR12-250 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Hydraulics | -40 °F | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 1.07 kg/m | 250 ft | 4:1 | 20 mm | 275 bar | 9-1/2 inch | 212 °F | -12 | 1.170 inch | 250 ft | 3/4 | |||
| HTBR16 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Agriculture Equipment | -40 | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 0.91 | View Part Details. | 4:1 | 1 | 3500 | 12 | 212 | -16 | 1.450 | random lengths | 1 | |||
| HTBR16-250 | Quote Required | TBD | 43 Series | 2 Braids of High Tensile Wire | Hydraulics | -40 °F | Lubricants (Oils) | Synthetic Rubber | MSHA | Copolyester | Parflex Division | Smooth | 1.36 kg/m | 250 ft | 4:1 | 25 mm | 241 bar | 12 inch | 100 °C | -16 | 36.8 mm | 250 ft | 1 |
