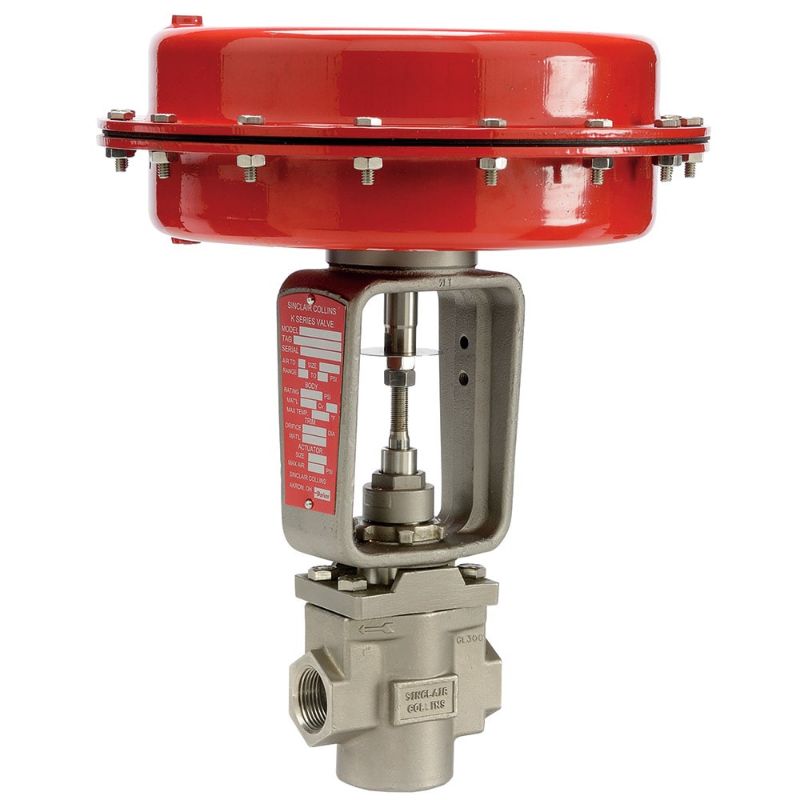

Parker HP204-2001 - Sinclair Collins - HP Series High Pressure Hydraulic Control Valves

Sinclair Collins - HP Series

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HP204-2001

$3,979.57

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Port Size	1/2 inch	Division	Fluid Control Division
Media	Water	Function	Normally Closed
Maximum Operating Temperature	160 °F	Body Material	Bronze
Seal Material	Stainless Steel	Actuation Type	External Pilot Operated
Flow Coefficient	4.3 Cv	Valve Configuration	2-Way
Maximum Pilot Pressure	40 psi	Minimum Pilot Pressure	35 psi
Maximum Pressure Differential	4000 psi	Port Type	NPT
Function	Normally Closed	Port Size	1/2
Seal Material	Stainless Steel	Actuation Type	External Pilot Operated
Media	Oil	Body Material	Bronze
Flow Coefficient	4.3	Valve Configuration	2-Way
Maximum Pilot Pressure	40	Minimum Pilot Pressure	35
Maximum Operating Temperature	160	Maximum Pressure Differential	4000

Product resources

Literature and Reference Materials

Tube Seal (PDF)
