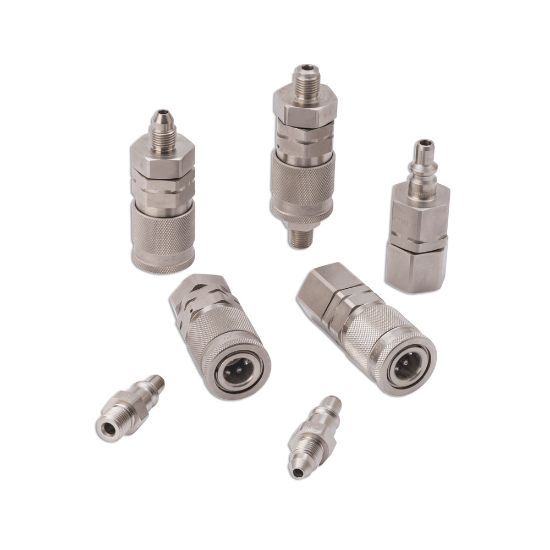

Parker HP006-1-NMD - High Pressure Quick Couplings - Rogan Series

Quick couplings for quick and easy hose assembly for Parker UHP Hose . Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HP006-1-NMD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hex Size	1 inch	Overall Length	2.31 inch
Coupling Half	Nipple without Check Valve	Connection Type	NPT
Flow Diameter	6 mm	Division	Parflex Division
Materials of Construction	Alloy Steel	Maximum Operating Pressure	103 MPa
Connection Size	1/2"-14 inch	Body Material	Alloy Steel
Connection Style	NPT	Connection Size (inch)	1/2" - 14
Thread Type	Male	Coupling Half	Nipple without Check Valve
Flow Diameter (inch)	0.24
