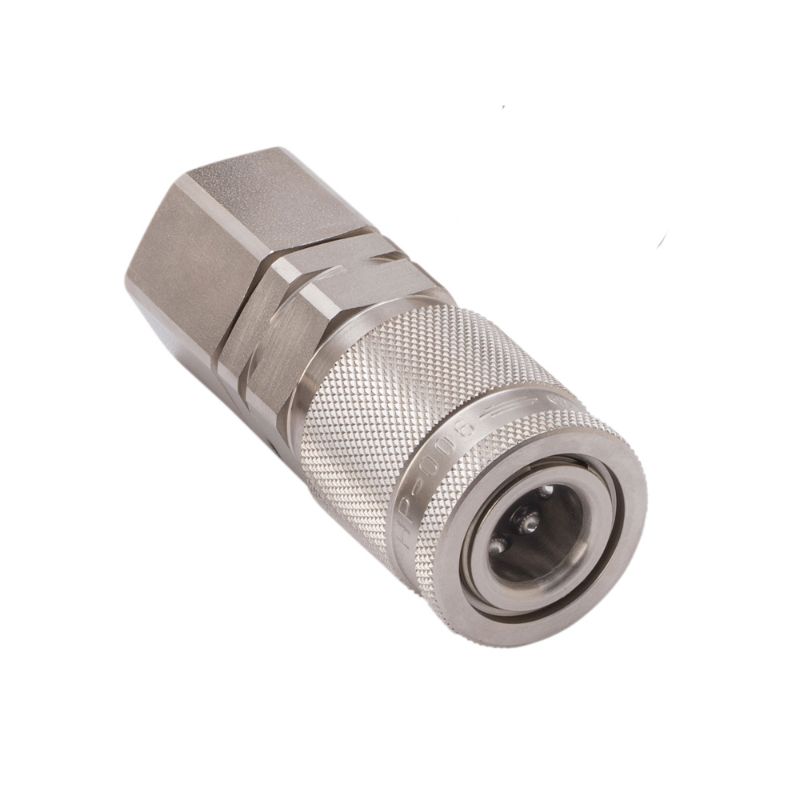

Parker HP006-0-NFC - High Pressure Quick Couplings - Rogan Series

Quick couplings for quick and easy hose assembly for Parker UHP Hose . Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HP006-0-NFC

$592.68

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Coupler
Connection Size	3/8"-18 inch	Overall Length	3.3 inch
Connection Type	NPT	Flow Diameter	0.24 inch
Materials of Construction	Alloy Steel	Hex Size	1.19 inch
Division	Parflex Division	Maximum Operating Pressure	103 MPa
Body Material	Alloy Steel	Coupling Half	Coupler
Connection Style	NPT	Connection Size (inch)	3/8" - 18
Thread Type	Female	Flow Diameter (inch)	0.24
