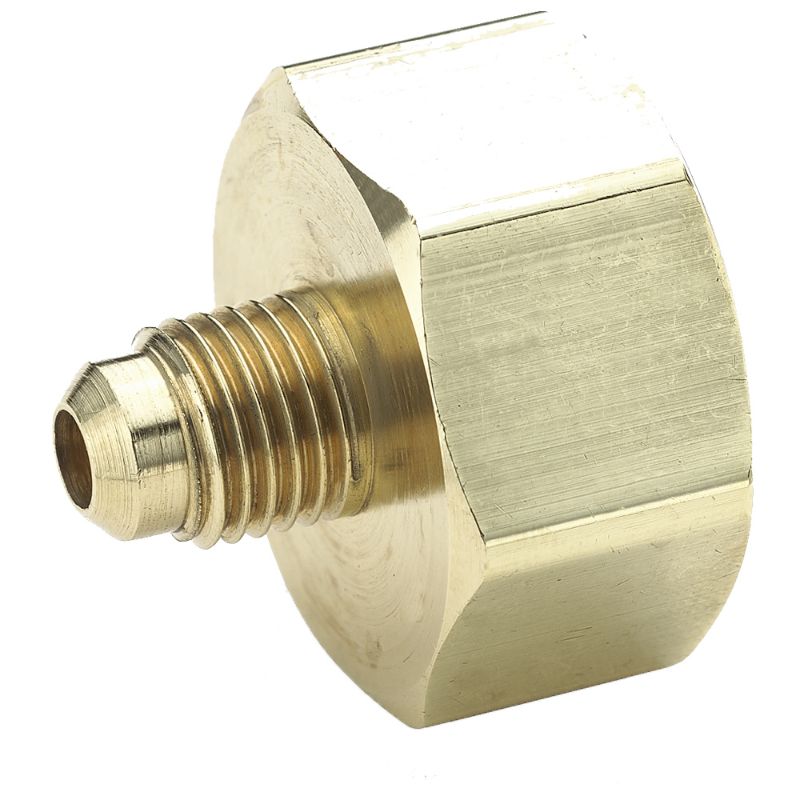

Parker 1F-4-8 - Brass 45° Flare Fittings

Name: Parker 1F-4-8 - Brass 45° Flare Fittings
SKU: 1F-4-8
Price: 23.40 USD
Availability: InStock

All brass 45° flare fitting that resists mechanical pullout. Meets functional requirements of SAE J512 and J513.

AFP Availability:

4 In Stock

North Chesterfield, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1F-4-8

$23.40/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	96.5 bar
Brand	Parker	Division	Fluid System Connectors Division
O-Ring Material	Fluorocarbon	Maximum Operating Temperature	250 °F
Technology	Fluid & Gas Handling	Media	Water, Air, Inert and Non-combustible Gasses, Flammable Liquid, Freon
Nut Material	Brass	Minimum Operating Temperature	-53 °C
Body Material	Brass	Division	Fluid System Connectors Division
Application	Adapters, Fuels, Natural Gas, Propane, Refrigerant Lines	Specifications Met	SAE J512, SAE J513
Tube Material	Copper, Aluminum, brass, Welded Steel Hydraulic tubing that can be flared	Connection 2 Type	Female Pipe
Connection 1 Type	Flare	Connection 1 Thread Size	7/16-20 inch
Connection 1 Tube Outside Diameter	1/4 inch	Connection 3 Tube Outside Diameter	NA
Connection 3 Type	NA	Connection 2 Thread Size	1/2 inch
Connection 3 Thread Size	NA	Connection 2 Tube Outside Diameter	NA
Product Style	Flare to Female Pipe	Shape	Drum adapter
