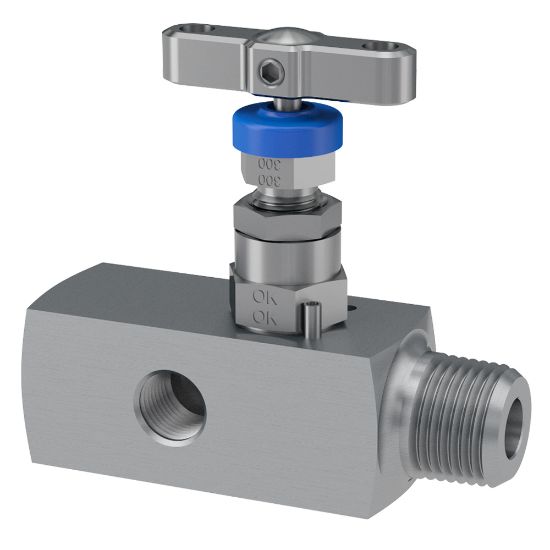

Picture of Parker HNVV6MO4M4FHP3 - Gauge Valves with Single Vent Port, Needle Pattern – H Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HNVV6MO4M4FHP3 - Gauge Valves with Single Vent Port, Needle Pattern – H Series

Parker's bar stock gauge valves with single vent, designed for safe isolation and control of flow to pressure measuring devices and venting or draining of trapped process media. Available in pressure ratings up to 6,000 psi and 10,000 psi.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HNVV6MO4M4FHP3
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Operating TemperaturePTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°FVent TypeNPT Female
DivisionInstrumentation Products DivisionFor Fluid TypeGeneral Gaseous and Liquid Media
Seat MaterialMetal to MetalVent Size1/4
Flow Coefficient0.35Orifice Size4
Additional OptionsContact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld <br/>Seat options: 6mm BoreOutlet Port Connection TypeNPT Female
Mounting OptionN/AInlet Connection Size1/4 Inch
Inlet Port Connection TypeNPT MaleOperating Pressure10000 PSI / 689 BAR
Packing MaterialGraphiteOptionsn/a
Meets CertificationsN/AAdditional Optionsn/a
Outlet Connection Size1/4 InchBody Material6Mo
Product resources

Literature and Reference Materials

02-0142SE
