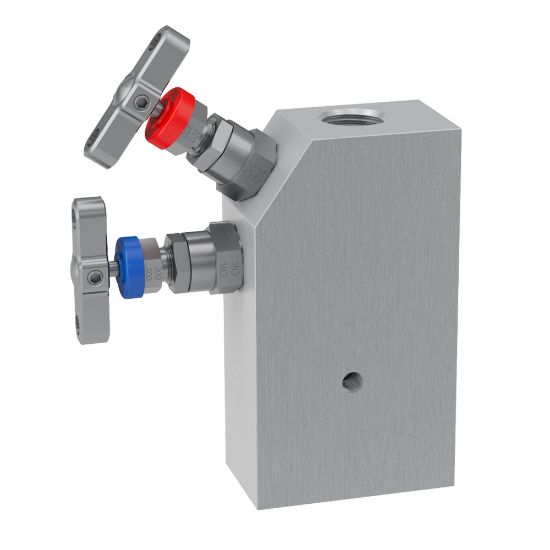

Parker HLS2EXTNC - 2, 3 and 5 Valve instrument enclosure manifolds, needle pattern - H Series

Multiple block instrument manifold valves of extended dimensions for installation within instrument protection enclosures. Available in pressure ratings up to 6,000 psi (414 bar) and in a wide range of materials for most service applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HLS2EXTNC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seat Material	PTFE	Division	Instrumentation Products Division
Body Type	Extended Flat Barstock	Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF
Operating Pressure	6000 PSI / 414 BAR	For Fluid Type	General Gaseous and Liquid Media
Operating Temperature	From -54°C to +538°C, From -65°F to +1000°F	Number of Valves	2
Outlet Connection	1/2 Inch NPT Female	Body Material	316 Stainless Steel
Vent Size	1/4 Inch NPT Female	Configuration	Isolate and Vent
Meets Certifications	NACE	Bolt Material	N/A
Seat Material	PTFE	Inlet Connection	1/2 Inch NPT Female
Mounting Style	Remote	Options	n/a
