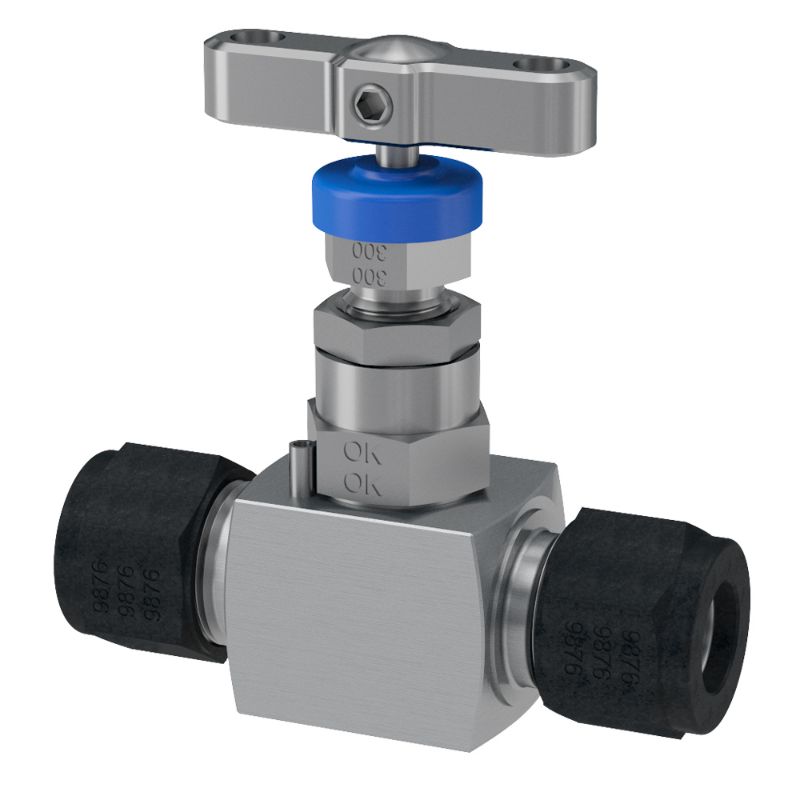

Picture of Parker HNVS8Z - Needle Pattern Hand Valves, Straight and Angle Styles – H Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker HNVS8Z - Needle Pattern Hand Valves, Straight and Angle Styles – H Series

Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. HNVS8Z
$120.82
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAFlow Coefficient0.35
For Fluid TypeGeneral Gaseous and Liquid MediaAdditional OptionsContact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection Options: BSPT, BSPP<br/>Seat Options: 6 MM bore, Regulating/Metering tip, Stellite
DivisionInstrumentation Products DivisionOrifice Size4 mm
Seal Material-Mounting OptionN/A
Flow DirectionStraightInlet Port Connection TypeCPI
Body Material316 Stainless SteelPacking MaterialPTFE
Seal Type-Inlet Connection Size1/2 Inch
Seat MaterialMetal to MetalOptionsn/a
Specifications MetN/AOutlet Connection Size1/2 Inch
Outlet Port Connection TypeCPIMaximum Operating Pressure6000 PSI / 414 BAR
Product resources

Literature and Reference Materials

02-0142SE

Compliance, Certifications & Safety
