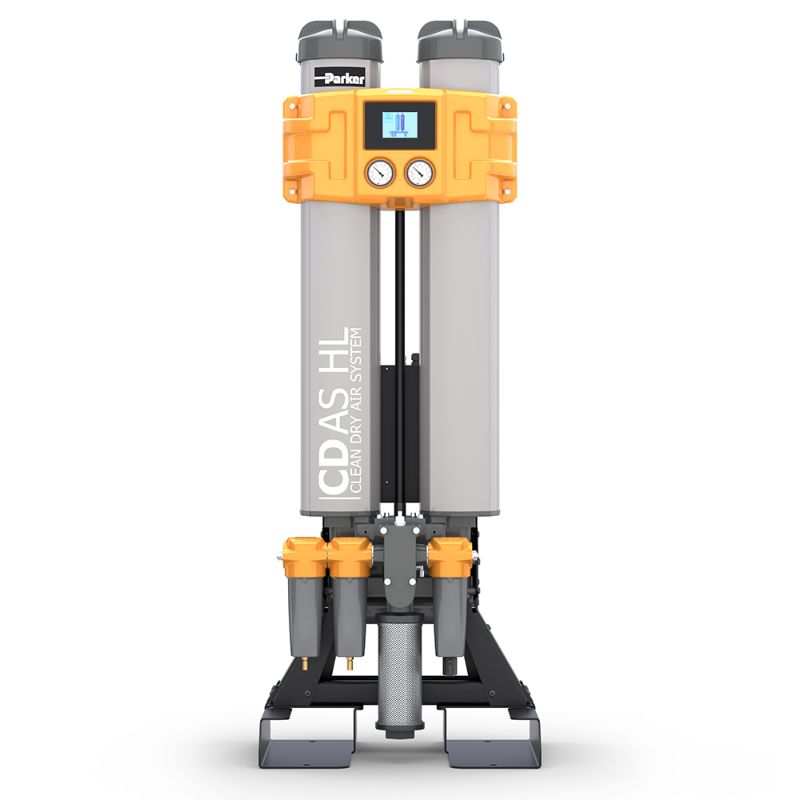

Parker CDASHL050-40N16AE - CDAS HL Medium Flow Heatless Compressed Air Dryer System

Medium flow compressed air treatment systems providing pressure dew points of -70°C, -40°C or -20°C at flow rates up to 300 m³/hr @ 7 barg. Suitable for all industrial compressed air applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CDASHL050-40N16AE

$8,995.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Gas Separation and Filtration Division EMEA
Product Style	Heatless	Operating Temperature	5 to 50 °C
Noise Level	< 75 dBA	Height	1133.0 mm
Ingress Protection Rating	IP55 Indoor Use Only	Operating Pressure	58 to 232 psig
Specifications Met	PED 2014/68/EU Fluid Group II	Product Type	Compressed Air Dryer
Application	Compressed Air Applications	Ambient Temperature	131.0
Product Series	CDAS	Width	559.0 mm
Weight	76 kg	Brand	Parker
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/>Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Technology	Filtration
Depth	490.0 mm	Division	Gas Separation and Filtration Division EMEA
Connection Type	NPT	Port Size	½ inch
Flow Rate	55 m³/h @ 7 barg (32 cfm @ 102 psig)	ISO Grade	Class 2.2.2 or Class 2.3.2
Pressure Dew Point	-40°C (-40°F) or -20°C (-4°F)	ATEX Specifications Met	No
Electrical Requirements	85 - 265V 1ph 50/60Hz
