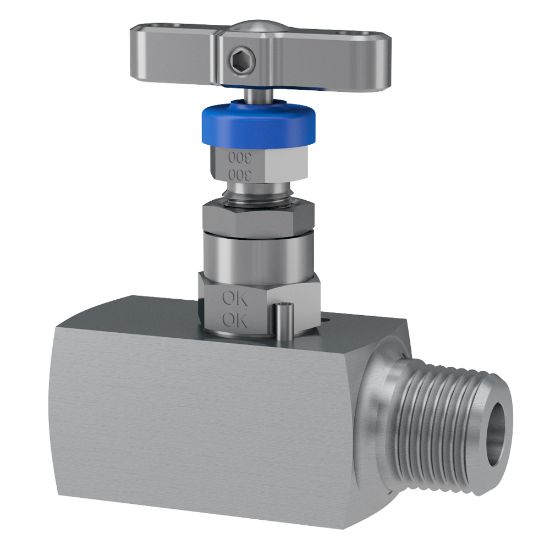

Parker HNV6258M8FHP - Needle Pattern Hand Valves, Straight and Angle Styles – H Series

Parker's bar stock hand valves designed for isolation and regulation in low flow critical applications. Available in straight (HNV) and angle (HNAV) styles, in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HNV6258M8FHP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection Options: BSPT, BSPP<br/>Seat Options: 6 MM bore, Regulating/Metering tip, Stellite	Division	Instrumentation Products Division
Orifice Size	4 mm	For Fluid Type	General Gaseous and Liquid Media
Flow Coefficient	0.35	Seal Type	-
Maximum Operating Pressure	10000 PSI / 689 BAR	Flow Direction	Straight
Packing Material	PTFE	Inlet Connection Size	1/2 Inch
Seat Material	Metal to Metal	Body Material	Alloy 625
Mounting Option	N/A	Inlet Port Connection Type	NPT Male
Specifications Met	N/A	Outlet Connection Size	1/2 Inch
Options	n/a	Seal Material	-
Outlet Port Connection Type	NPT Female

Product resources

Literature and Reference Materials

02-0142SE

Autoclave Engineers Technicial/Special Materials Data Catalog (PDF)

Compliance, Certifications & Safety

FE Class C Certificate - HNV Series Needle Valve (PDF)
