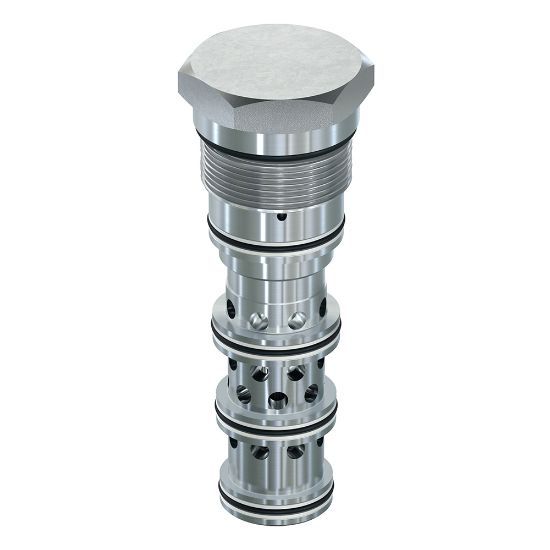

Parker N5D300-10.0V - 3 Way/2 Position Pilot Operated Directional Control Valves

Parker’s N5 valves are high flow / high pressure 3-way 2-position spool-type pilot-operated cartridge valves that can be used to control direction, pressure, or flow.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. N5D300-10.0V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Systems Division	Operation Type	Pilot Operated
Pilot Location	External	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15	Maximum Operating Pressure	6000
Maximum Inlet Pressure Rating	6000	Drain Option	External
Function	Diverter	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operating Temperature	-15 to +400
Maximum Operating Temperature	+400	Weight	2.2
Switching Pressure	145	Cavity Size	100-1
Actuation Type	Switching	Maximum Flow Rate	105
Flow Rate	105	Leak Rate	400 @ 2900 PSI (200 BAR)
Flow Direction	2,3,4 Blocked Neutral, 2-3-4 Piloted	Installation Torque	118
Standard Flow Rate Setting	53	Seal Material	Fluorocarbon
Configuration	Normally Closed	Switching Pressure	145 PSI, 10 BAR
Flow Rate	105 GAL/MIN, 400 L/MIN	Flow Direction	2,3,4 Blocked Neutral, 2-3-4 Piloted
Standard Flow Rate Setting	53 GAL/MIN, 200 L/MIN
