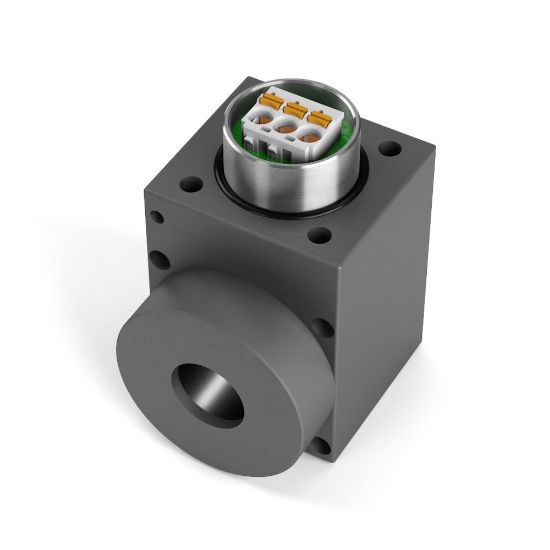

Parker HLC10LD024JA - Explosion Proof Coils

Note: This product is no longer available - please contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HLC10LD024JA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Gas Temperature Class	T4
Maximum Ambient Temperature	158	Seal Material	n/a
Weight	1.95	Minimum Operating Temperature	n/a
Duty Cycle	Continuous @ 100% Voltage	Division	Hydraulic Valve Systems Division
For Fluid Type	n/a	Power Consumption	21.4
Coil Type	Hazardous Location	Connection Type	M20x1.5 Metric Conduit
Minimum Ambient Temperature	-40	Division	Hydraulic Systems Division
Actuation Type	n/a	Resistance	26.9
Maximum Flow Rate	n/a	Maximum Operating Pressure	n/a
Specifications Met	Up to 1000 hr Salt Spray	Input Voltage	24 VDC
Maximum Operating Temperature	n/a	Dust Temperature Class	T135
Body Material	n/a	Power Consumption	21.4
Connection Type	M20x1.5 Metric Conduit	Voltage	24 VDC

Product resources

Literature and Reference Materials

FOR REFERENCE ONLY! - HLC10 Catalog Page (HY15-3502-R). See crossref.parker.com for replacement (PDF)
