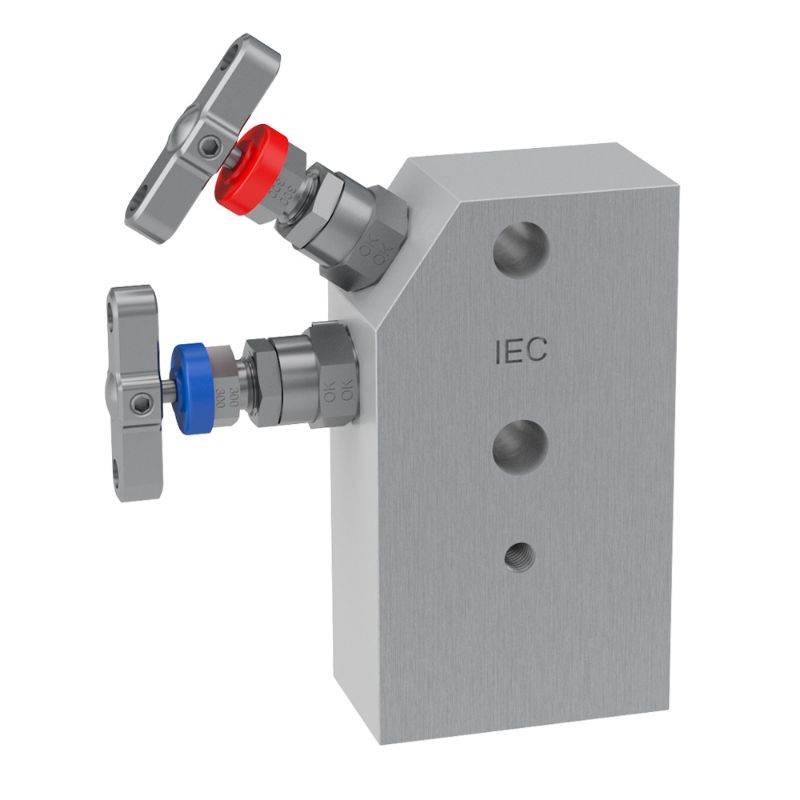

Parker HD6MO2EXT3PNC - 2, 3 and 5 Valve instrument enclosure manifolds, needle pattern - H Series

Multiple block instrument manifold valves of extended dimensions for installation within instrument protection enclosures. Available in pressure ratings up to 6,000 psi (414 bar) and in a wide range of materials for most service applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD6MO2EXT3PNC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Instrumentation Products Division	For Fluid Type	General Gaseous and Liquid Media
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	Operating Pressure	6000 PSI / 414 BAR
Operating Temperature	From -54°C to +538°C, From -65°F to +1000°F	Body Type	Extended Flat Barstock
Seat Material	Graphite	Body Material	6Mo
Vent Size	1/4 Inch NPT Female	Configuration	Isolate and Vent
Inlet Connection	1/2 Inch NPT Female	Number of Valves	2
Options	Blank Plug	Meets Certifications	NACE
Mounting Style	Direct	Bolt Material	Carbon Steel
Seat Material	Graphite	Outlet Connection	DIN IEC B Flange
