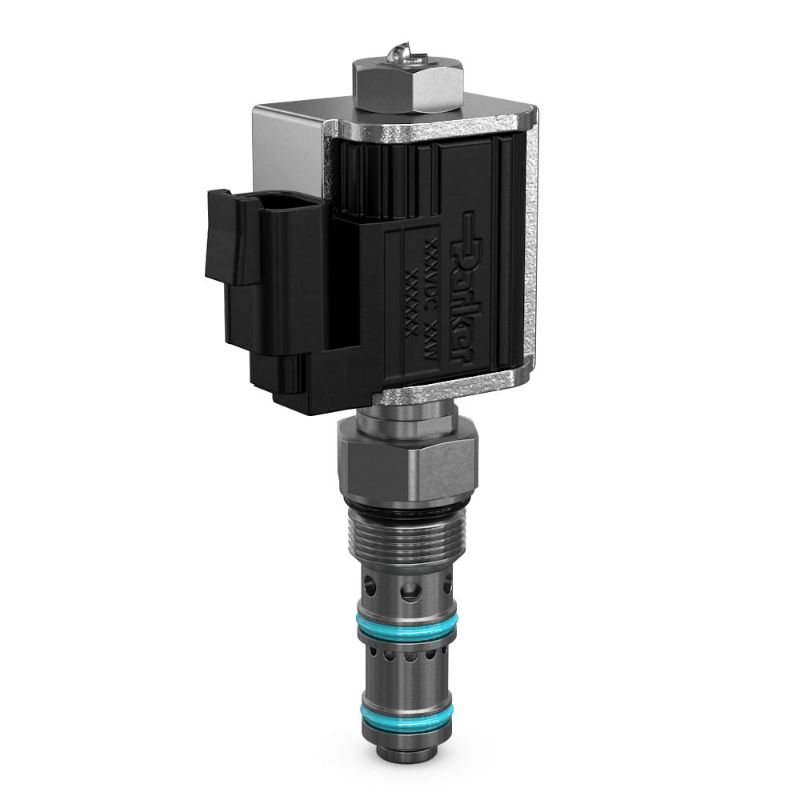

Parker FAPC101C - Pressure Compensated Proportional Poppet Valves

Parker’s family of 2-way proportional poppet valves are available normally-open or normally-closed with a standard integrated pressure compensator; capable of flows up to 83 lpm (22 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FAPC101C

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Flow Rate	38 L/min	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Maximum Operating Temperature	+200 °F
Maximum Operating Pressure	210 bar	Weight	0.52 lb
Maximum Inlet Pressure Rating	3000 psi	Operation Type	Solenoid Operated
Installation Torque	34 Nm	Coil Nut Tightening Torque	4.1 Nm
Maximum Flow Rate	38 L/min	Frequency	100-400 Hz
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Operating Temperature	-37 to +93 °C
Seal Material	D-Ring	Function	Proportional Pressure Compensated Flow Control/Regulator
Cavity Size	3X	Coil Type	5/8" Super Coil Low Watt (CAS)
Hysteresis	< 10%	Flow Direction	Top to Side (3 - 2)
Power Consumption	18 W	Minimum Pressure Differential	500 psi
Current	Max: 1.5 @ 12 VDC, 0.75 @ 24 VDC A	Configuration	Normally Closed
Maximum Flow Rate	10 GAL/MIN, 38 L/MIN	Seal Material	D-Ring
