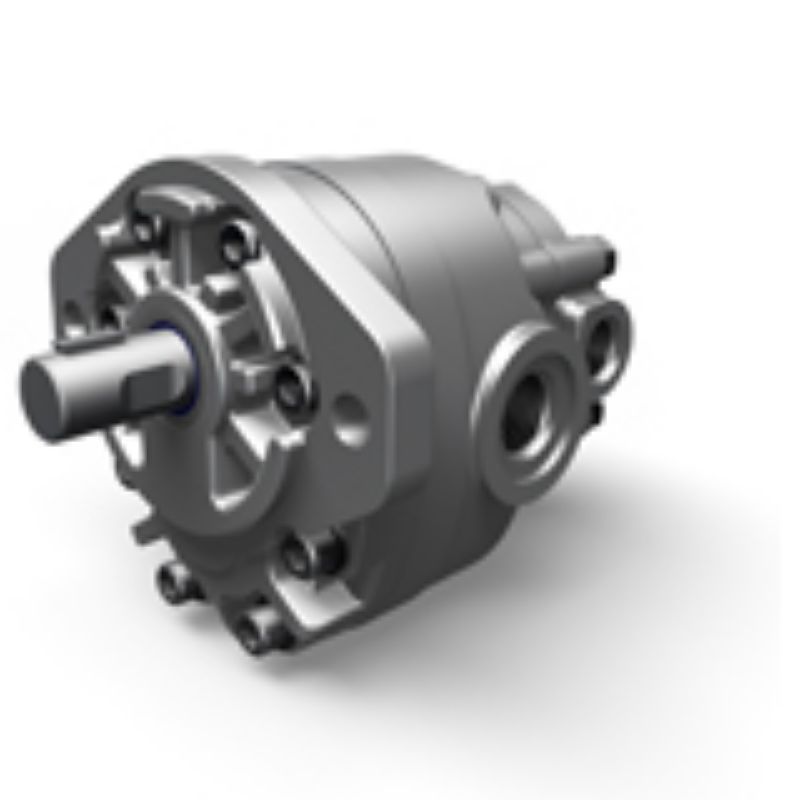

Parker HD25AA1A07A - Aluminum Pumps – HD Series

Parker’s Aluminum Pump HD Series fixed displacement gear pump offers high performance and high power density due to its aluminum construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HD25AA1A07A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	n/a	Body Material	Aluminum
Division	Pump & Motor Division	Media	n/a
Pump Type	Fixed	Maximum Flow Rate	n/a
Operating Pressure	up to 2500 psi	Maximum Operating Pressure	2500 psi
For Fluid Type	Transmission Fluids	Operating Temperature	-40 to 185 °F
Filter Efficiency Rating	Maintain SAE Class 4	Maximum Continuous Pressure	172.0 bar
Maximum Kinematic Viscosity	1000 SUS (Operating)	Weight	7 to 10 lb
Displacement	1.84 inch3/rev	Product Type	Model HD Pump with aluminum bearing sleeve, fixed displacement
Operating Speed	500 to 4000 RPM	Maximum Displacement	30.18/10.5 cm3/rev
Rotation	CounterClockWise	Shaft Seal Material	NBR
Pressure Relief Setting (psig)	n/a	Porting	UNF-2B SAE Straight Thread: 7/8-14 Inlet x 3/4-16 Outlet - SIDE
Shaft Type	.750 Dia. Keyed w/1.56 extension	Mounting Style	2-Bolt SAE A
Overall Length (inch)	7.63 (193.802 mm)	Pump Displacement (cu in/rev)	.168 (2.76 cc/rev)
