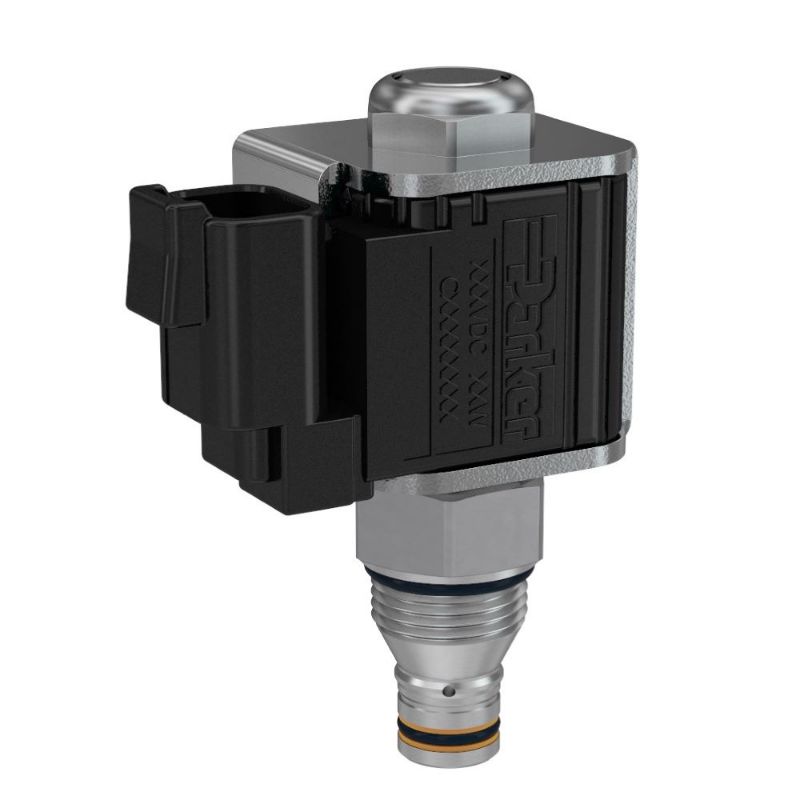

Parker GS027201V - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS027201V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Maximum Operating Pressure	3000 psi
Connection Size	n/a	Specifications Met	N/A
Seal Material	Fluorocarbon	Body Material	n/a
Weight	0.14 kg	Division	Hydraulic Systems Division
Flow Direction	Bi-directional	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Function	2-Way
Override Functionality	n/a	Cavity Size	C08-2
Wire Mesh Screen Included	Yes	Operation Type	Solenoid Operated
Installation Torque	22 lb-ft	Coil Nut Tightening Torque	4.1 Nm
Maximum Inlet Pressure Rating	210 bar	Maximum Operating Temperature	+204 °C
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-15 to +400 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Application	Mobile Hydraulics, Industrial Hydraulics
Bore Diameter	N/A	Seat Material	Steel
Flange Face Type	N/A	ANSI Flange Class	N/A
Flow Rate	1.7 L/min	Response Time	10 ms
Maximum Flow Rate	1.7 L/min	Seal Material	Fluorocarbon
Configuration	Normally Closed	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	Yes
Flow Rate	0.45 GAL/MIN, 1.7 L/MIN
