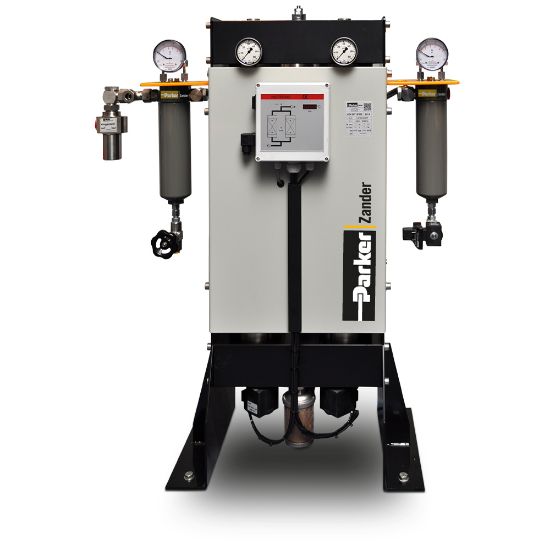

Parker H50/100D2-G230MT - HDK-MT High Pressure Compressed Air Dryer (up to 100 bar g)

For applications requiring high pressure compressed air or nitrogen gas up to 100 bar with volume flows of up to 650m³/h and pressure dew points down to -40°C.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H50/100D2-G230MT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Gas Separation and Filtration Division EMEA	Port Size	3/4 inch
Ingress Protection Rating	65	Maximum Operating Temperature	131 °F
Brand	Zander	Maximum Ambient Temperature	50 °C
Minimum Ambient Temperature	1 °C	Minimum Operating Temperature	33.8 °F
Product Type	High Pressure Adsorption	Specifications Met	PED 97/23/EC Fluid Group II, TR
Connection Type	BSP-P DIN ISO 228	Pressure Dew Point	-13 to -104 °F
Electrical Requirements	230V, 50-60Hz, others on request	Controller Type	Multitronic with Dew Point Sensor
Maximum Operating Pressure	100 barg	Minimum Operating Pressure	50 barg
Width	770 mm	Compatible Prefilter	GH9/100XP
Compatible After Filter	GH9/100ZP/VV	Weight	260 kg
Maximum Flow Rate	306.06 CFM at 1450 psig, PDP to 104°F	Depth	450 mm
Height	1850 mm	Maximum Flow Rate (m³/h)	520 @ 100 bar(g) / PDP - 40° C
