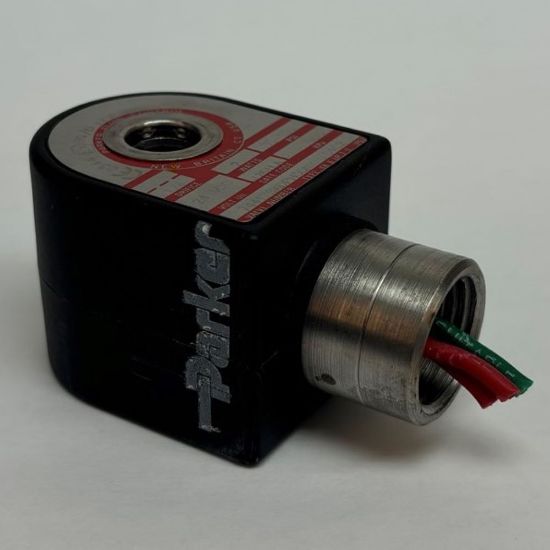

Parker H322B6 - Chart 8 Solenoid Coils

Solenoid coil kits for use on pressure vessels with "Coil Reference 8" / "Chart 8" compatiblity listed in FCD General Purpose Catalog

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H322B6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Insulation Class	Class H
Power Consumption	22 W	Coil Type	1/2" NPT Conduit w/ 18" Leads
Compatible Valve	For Chart 8 Compatible Pressure Vessels	Specifications Met	cULus Listed Solenoid for Hazardous Locations; CE - Low Voltage, EMC
Ingress Protection Rating	cULus - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E - T3A	Input Voltage	120/60 VDC
Input Voltage	24.0	Insulation Class	Class H
Ingress Protection Rating	NEMA 4,4X	Coil Type	18" Leads
Specifications Met	cURus Recognized Component; CE - Low Voltage, EMC	Compatible Valve	For Chart 8 Compatible Pressure Vessels
Power Consumption	22
