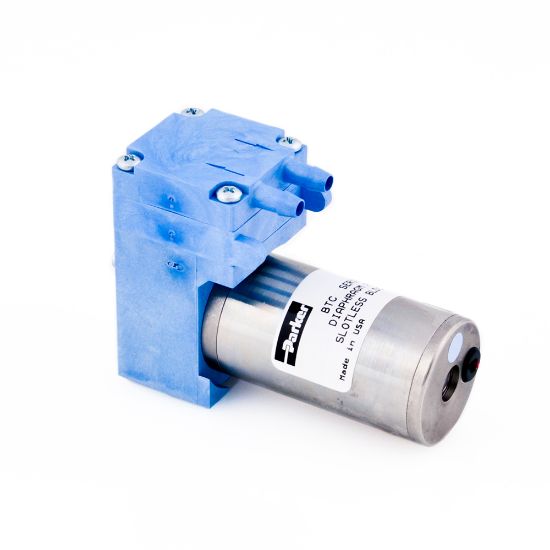

Parker H124-11 - BTC Single and Dual Head Miniature Diaphragm Pump (Gas)

BTC is not recommended for new designs. The BTX-Connect and BTX-Brush series have succeeded the BTC with reduced weight, reduced vibration, added motor features, and an increased life rating.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. H124-11

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Rated Speed	3500	Division	Precision Fluidics Division
Diaphragm Material	EPDM	Length	73.5
Body Material	Vectra LCP	Tube Type	None
Vacuum Pressure Rating	-457.2	Pressure Rating	1.7
Operational Life	>10000	Motor Type	Brushless DC
Weight	210.0	Height	54.3
Motor Control Option	No Control Input (Power Input Only)	Width	30.0
Motor Option	>10k Hour, High Efficiency Slotless BLDC, Up to 4.5 L/min	Pump Type	Pressure and/or Vacuum (High Pressure, Less Flow)
Free Flow Rate	2.6 L/min	Input Voltage	12
Part Type	Obsolete	Pump Size	Single Head, Up to 5.5 L/min
