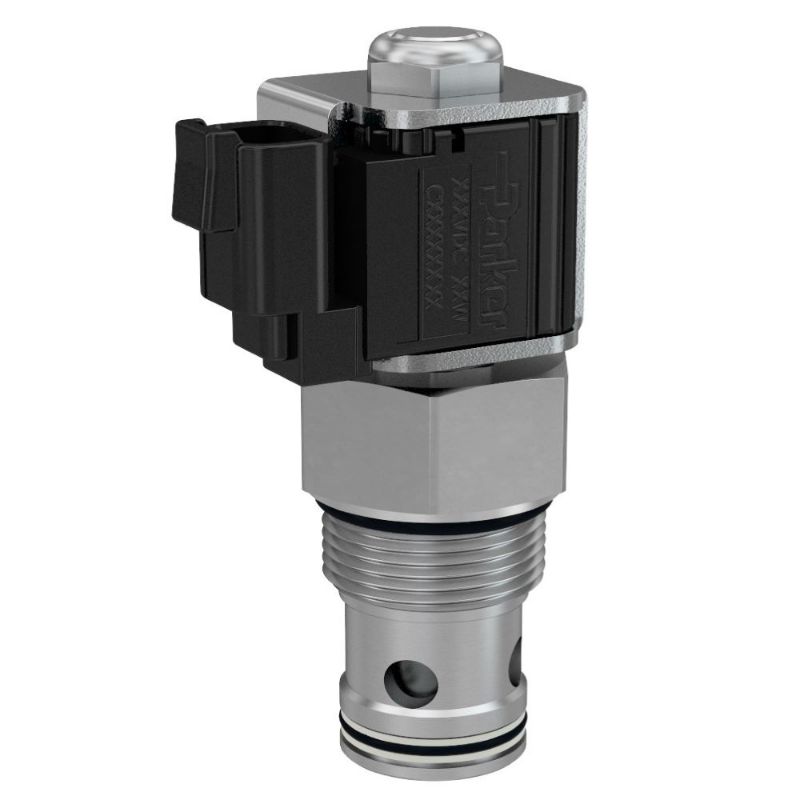

Parker GS068010N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS068010N

$290.75

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Connection Size	n/a	Specifications Met	N/A
Body Material	n/a	Division	Hydraulic Systems Division
Flow Direction	Bi-directional	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	2-Way	Maximum Operating Pressure	210 bar
Minimum Operating Temperature	-34 °C	Weight	0.88 lb
Maximum Inlet Pressure Rating	3000 psi	Cavity Size	C16-2
Coil Nut Tightening Torque	3 lb-ft	Maximum Operating Temperature	+121 °C
Configuration	Normally Closed	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Coil Type	1/2" Super Coil Low Watt (CCS)
Application	Mobile Hydraulics, Industrial Hydraulics	Bore Diameter	N/A
Seat Material	Steel	Flange Face Type	N/A
ANSI Flange Class	N/A	Override Functionality	Detented
Flow Rate	75 Gal/min	Leak Rate	9 drops/min
Maximum Flow Rate	285 L/min	Installation Torque	80 lb-ft
Seal Material	Nitrile	Configuration	Normally Closed
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Actuation Type	Electrical, Manual
Wire Mesh Screen Included	No	Flow Rate	75 GAL/MIN, 285 L/MIN
