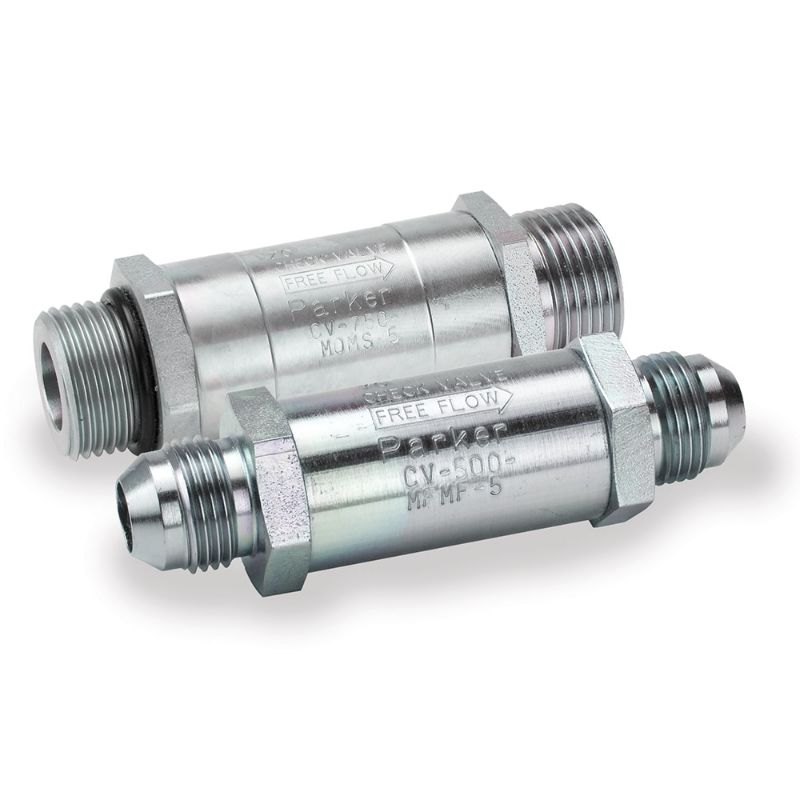

Parker CV-1000-MSMS-5 - Modular, High Flow, Hydraulic In Line Check Valves - CV Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. CV-1000-MSMS-5

$291.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	-40 °F
Connection Type	Male Seal-Lok to Male Seal-Lok	Division	Quick Coupling Division
Minimum Operating Temperature	250 °F	Body Material	Steel
Mounting Type	Threaded	Maximum Flow Rate	n/a
Connection Size	1-5/16"-12 UN inch	Maximum Operating Pressure	3000 psi
Seal Material	Metal	Actuation Type	Mechanical
Seat Type	Metal Seal	Configuration	n/a
Flow Direction	n/a	Body Size (inch)	1
Inlet Port Connection Type	Male Seal-Lok	Outlet Port Connection Type	Male Seal-Lok
Cracking Pressure (psi)	5	Inlet Port Size (inch)	1 7/16 - 12 UN
Outlet Port Size (inch)	1 7/16 - 12 UN
