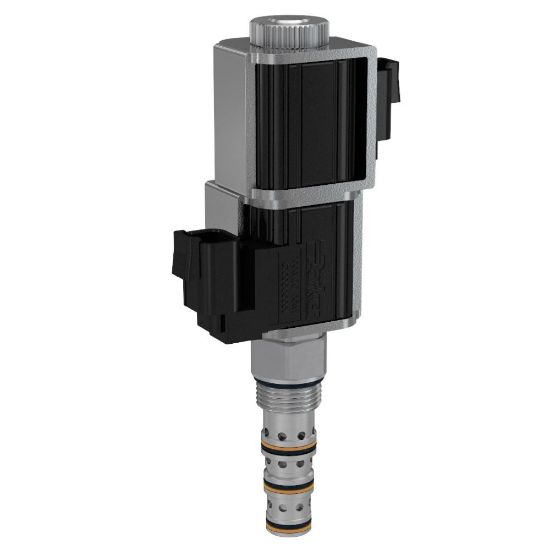

Parker GS045450ND - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS045450ND

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-34 °C	Maximum Operating Pressure	350 bar
Maximum Inlet Pressure Rating	350 bar	Maximum Flow Rate	11 Gal/min
Installation Torque	34 Nm	Coil Nut Tightening Torque	4.1 Nm
Cavity Size	C10-4	Flow Rate	42 L/min
Function	4-Way	Weight	0.26 kg
Maximum Operating Temperature	+121 °C	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Floating Center
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Type	5/8" Super Coil	Response Time	30-60 ms
Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min	Override Functionality	Push/Pull - Center Detent
Maximum Tank Pressure	3000 psi	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	11 GAL/MIN, 42 L/MIN	Actuation Type	Electrical, Manual
Configuration	Floating Center	Seal Type	Nitrile
