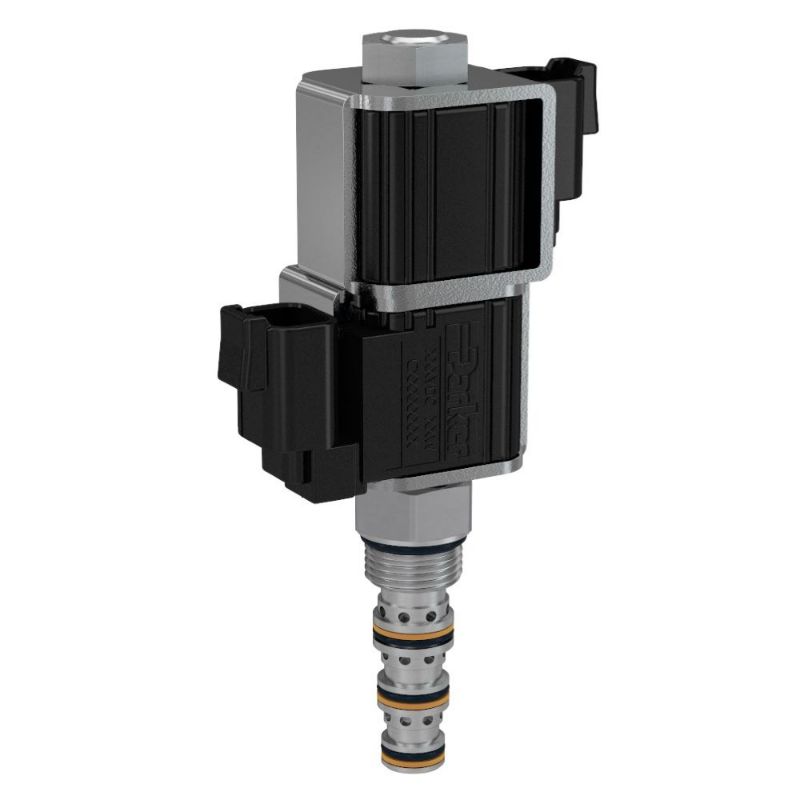

Parker GS025100V - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GS025100V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Fluorocarbon
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-15 °F	Weight	0.4 lb
Override Functionality	n/a	Maximum Inlet Pressure Rating	350 bar
Operation Type	Solenoid Operated	Installation Torque	22 lb-ft
Coil Nut Tightening Torque	3 lb-ft	Cavity Size	C08-4
Function	4-Way	Maximum Operating Temperature	+204 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-26 to +204 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Flow Rate	4.5 Gal/min	Leak Rate	250 @ 5000 PSI (350 BAR) cm3/min
Configuration	Closed Center	Mounting Type	Screw in cartridge valve
Maximum Flow Rate	17 L/min	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Maximum Tank Pressure	3000 psi	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Flow Rate	4.5 GAL/MIN, 17 L/MIN
Configuration	Closed Center	Seal Type	Fluorocarbon
