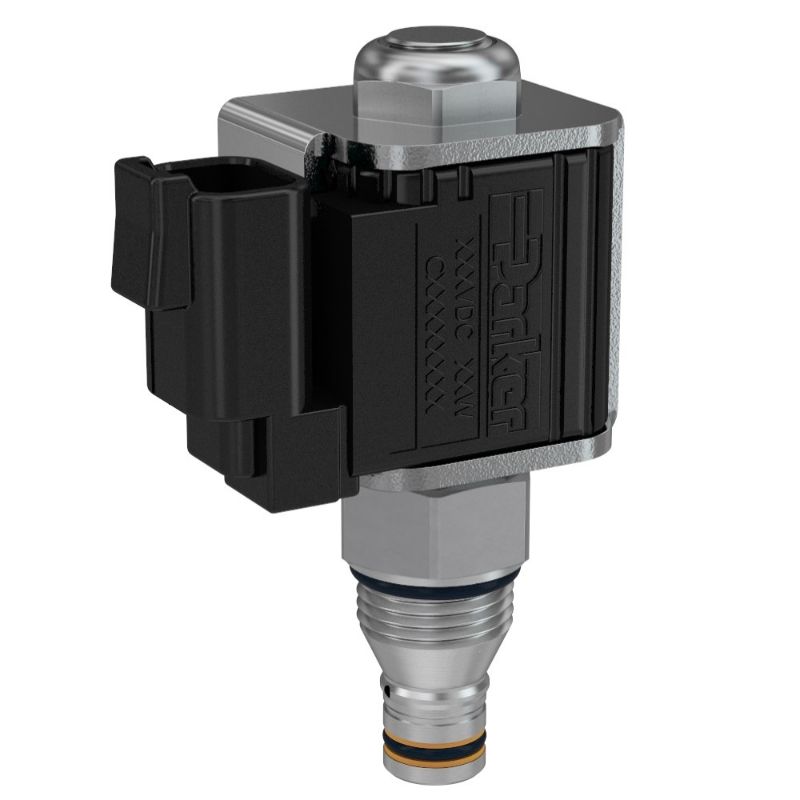

Parker GS027700N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

Availability:	Quote Required
Partner Available:	13 In Stock

Brand Parker

Part No. GS027700N

$135.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Maximum Operating Pressure	3000 psi	Seal Material	Nitrile
Connection Size	n/a	Specifications Met	N/A
Body Material	n/a	Division	Hydraulic Systems Division
Flow Direction	Bi-directional	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Function	2-Way	Minimum Operating Temperature	-34 °C
Override Functionality	n/a	Cavity Size	C08-2
Maximum Inlet Pressure Rating	3000 psi	Operation Type	Solenoid Operated
Installation Torque	30 Nm	Coil Nut Tightening Torque	3 lb-ft
Maximum Operating Temperature	+250 °F	Configuration	Normally Open
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Coil Type	1/2" Super Coil	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Application	Mobile Hydraulics, Industrial Hydraulics
Bore Diameter	N/A	Seat Material	Steel
Flange Face Type	N/A	ANSI Flange Class	N/A
Weight	0.31 lb	Flow Rate	0.45 Gal/min
Response Time	10 ms	Maximum Flow Rate	1.7 L/min
Seal Material	Nitrile	Configuration	Normally Open
Maximum Inlet Pressure Rating	3000 PSI, 210 BAR	Actuation Type	Electrical
Wire Mesh Screen Included	No	Flow Rate	0.45 GAL/MIN, 1.7 L/MIN
