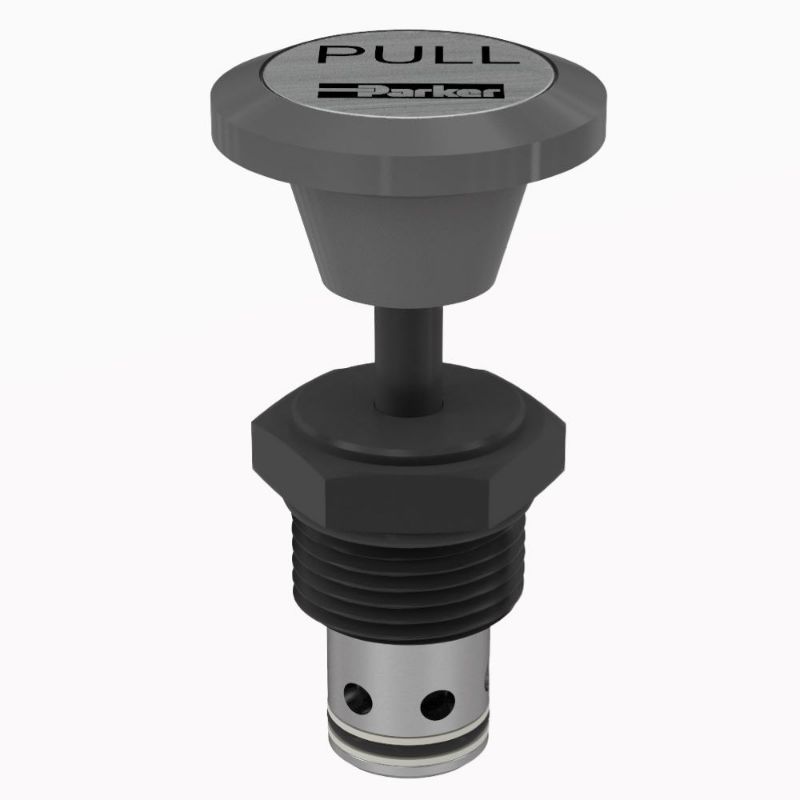

Parker DL101K - 2 Position, 2 Way Normally Closed Poppet Type Manual Valve

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

AFP Availability:	Quote Required
Partner Available:	18 In Stock

Brand Parker

Part No. DL101K

$133.34/each

Products specifications

Attribute name	Attribute value
Flow Rate	13 Gal/min	Weight	0.09 kg
Actuation Type	Knob	Connection Size	N/A
Seal Material	Nitrile	Valve Material	All parts steel. All operating parts hardened steel
Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3500 psi
Cracking Pressure	N/A	Maximum Operating Pressure	240 bar
Configuration	Normally Closed	Maximum Tank Pressure	250 psi
Function	Poppet Type	Connection Type	N/A
Maximum Operating Temperature	+121 °C	Division	Hydraulic Cartridge Systems Division
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Cavity Size	C10-2
Operation Type	Manual	Leak Rate	5 @ 3500 PSI (240 BAR) drops/min
Maximum Flow Rate	48.8 L/min	Body Material	N/A
Mounting Type	Screw in cartridge valve	Installation Torque	16 lb-ft
Division	Hydraulic Systems Division	Minimum Operating Temperature	-34 °C
Operating Temperature	-30 to +250 °F	Seal Material	Nitrile
Configuration	Normally Closed	Flow Rate	13 GAL/MIN, 48.8 L/MIN
Actuation Type	Knob
