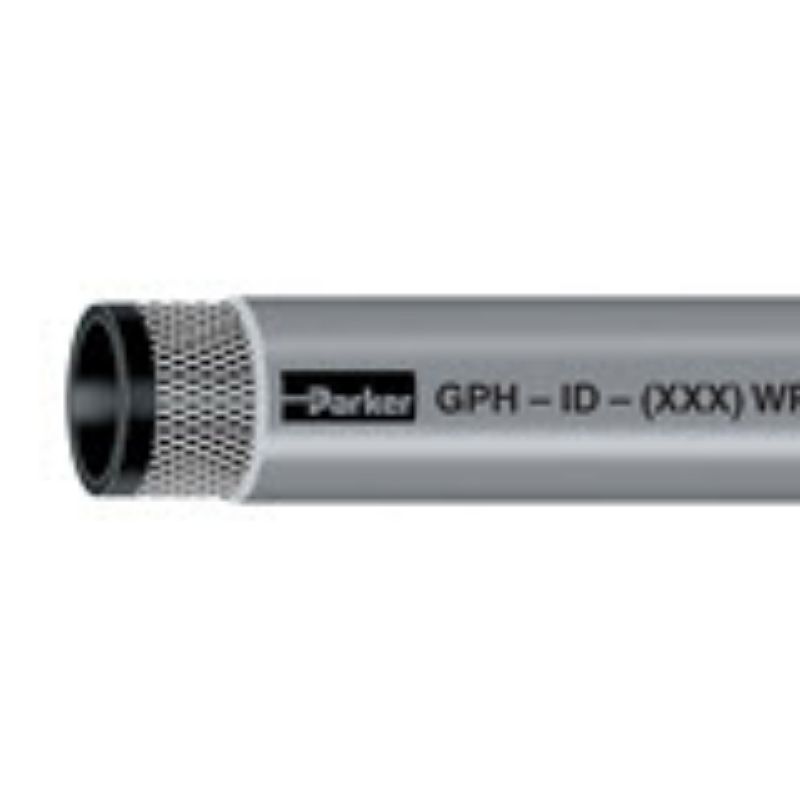

Parker GPH-4GRA500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

AFP Availability:	Quote Required
Partner Available:	1236 In Stock

Brand Parker

Part No. GPH-4GRA500RL

$2.08/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Water
Compatible Fitting	HY Series	Maximum Operating Temperature	150 °F
Division	Hose Products Division	Minimum Operating Temperature	-15 °F
Application	PVC Hose	Package Type	Coil
Hose Inner Tube Material	Black	Weight	0.08 lb
Length per Package	500 ft	Maximum Operating Pressure	20.7 bar
Minimum Bend Radius	0.8 inch	Cover Material	PVC
Hose Reinforcement Material	2 Plies of Textile	Cover Color	Gray
Vacuum Pressure Rating	23 Inch-Hg	Outside Diameter	13 mm
Cover Structure	Smooth	Inside Diameter	6.4 mm
Hose I.D. (inch)	1/4	Color	Gray
Maximum Working Pressure (psi)	300

Product resources

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
