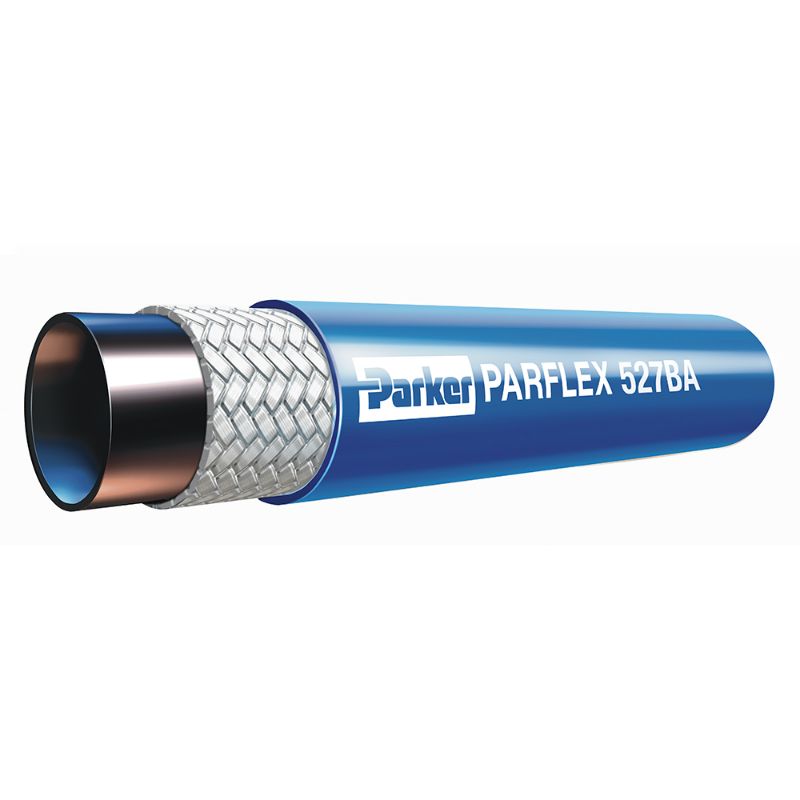

Parker 527BA-3 - Breathing Air Refill Hose - 527BA

Name: Parker 527BA-3 - Breathing Air Refill Hose - 527BA
SKU: 527BA-3
Price: 9.61 USD
Availability: InStock

Parkers’ Breathing Air Refill Hose is a 7,000 psi working pressure hose. It complies with CGA G7.1-1 Grade E Breathing Air Standards and NFPA 1901 requirements for Fire Apparatus.

AFP Availability:

461 In Stock

North Chesterfield, VA	207
Richmond, VA	76 (Pickup only)
West Knoxville, TN	53
Johnson City, TN	50 (Pickup only)
East Knoxville, TN	50
Norfolk, VA	25

Partner Available:

1420 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 527BA-3

$9.61/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Inside Diameter	3/16 inch
Division	Parflex Division	Maximum Operating Temperature	82 °C
Compatible Fitting	CG Series	Media	Air
Design Factor	4:1	Hose Inner Tube Material	Polyamide (PA)
Minimum Operating Temperature	-40 °C	Application	Pneumatics
Cover Material	Polyurethane	Specifications Met	CGA G7.1, Grade E (Breathing Air Standards)
Minimum Bend Radius	1-1/2 inch	Hose Reinforcement Material	Fiber
Weight	0.05 lb/ft	Maximum Operating Pressure	7000 psi
Outside Diameter	10.9 mm	Hose I.D. (inch)	3/16
