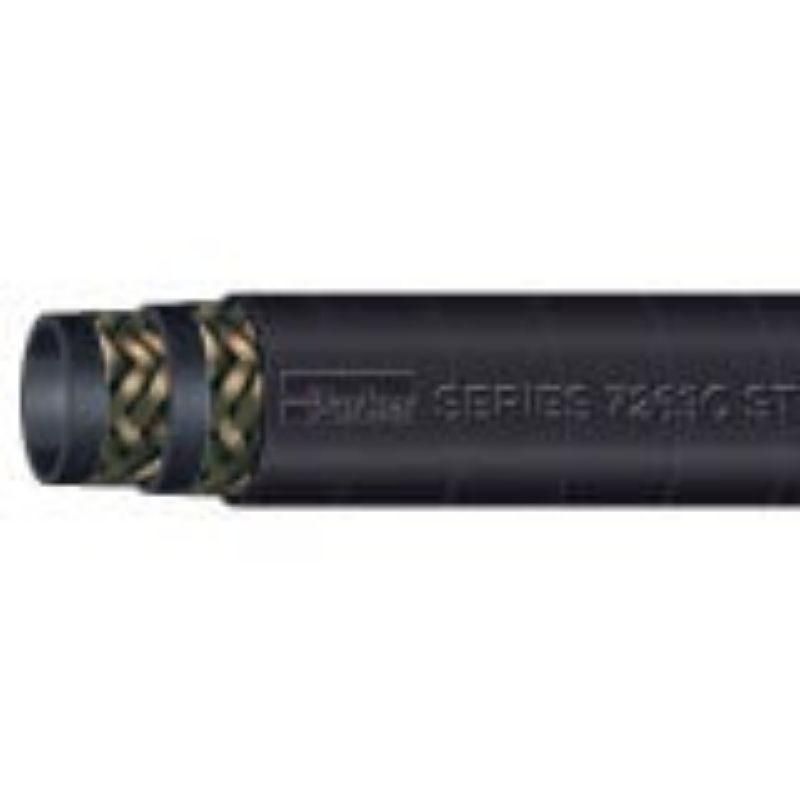

Parker 7263C-752 - STEAM-LANCE® 250 COMPACT STEAM HOSE

Steam-Lance® 250 Compact Steam Hose is designed for steam applications to 406°F for saturated steam at 261 psi and 450° for superheated steam at 250 psi

Availability:	Quote Required
Partner Available:	1235 In Stock

Brand Parker

Part No. 7263C-752

$8.95

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Media	Steam
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Size	-12
Inside Diameter	19.1 mm	Minimum Bend Radius	9 inch
Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)	Nominal Hose Inside Diameter	20 mm
Cover Structure	Perforated	Weight	0.47 lb/ft
Application	Refineries	Outside Diameter	30.5 mm
Specifications Met	ISO 6134, Type 2	Maximum Operating Pressure	17 bar (Superheated Steam)
Hose Reinforcement Material	Multiple Braids of Wire	Maximum Operating Temperature	208 °C (Saturated Steam)
Color	Black	Hose I.D. (inch)	3/4

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
