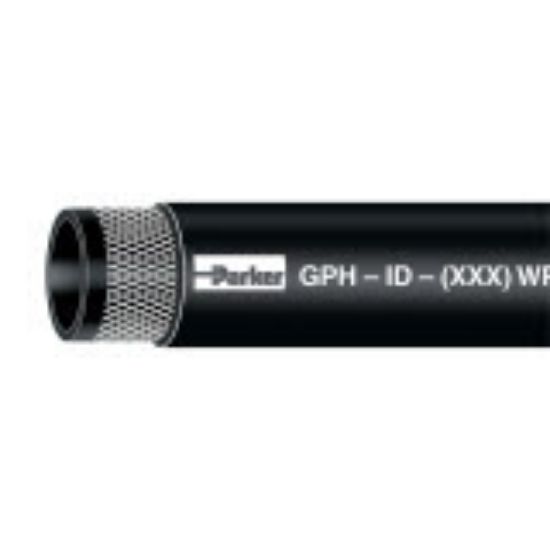

Parker GPH-4BLK500RL - PVC General Purpose Hose, Series GPH

PVC General Purpose Hose is designed for transfer of air, mild chemicals and water in applications to 150°F and 300 psi, Series GPH

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GPH-4BLK500RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Inside Diameter	1/4 inch	Weight	0.08 lb
Compatible Fitting	HY Series	Cover Material	PVC
Maximum Operating Pressure	20.7 bar	Minimum Bend Radius	0.8 inch
Length per Package	500 ft	Package Type	Coil
Division	Hose Products Division	Outside Diameter	13 mm
Maximum Operating Temperature	65 °C	Cover Color	Black
Hose Inner Tube Material	Black	Minimum Operating Temperature	-15 °F
Media	Air	Vacuum Pressure Rating	23 Inch-Hg
Cover Structure	Smooth	Hose Reinforcement Material	2 Plies of Textile
Application	PVC Hose	Color	Black
Maximum Working Pressure (psi)	300	Hose I.D. (inch)	1/4
