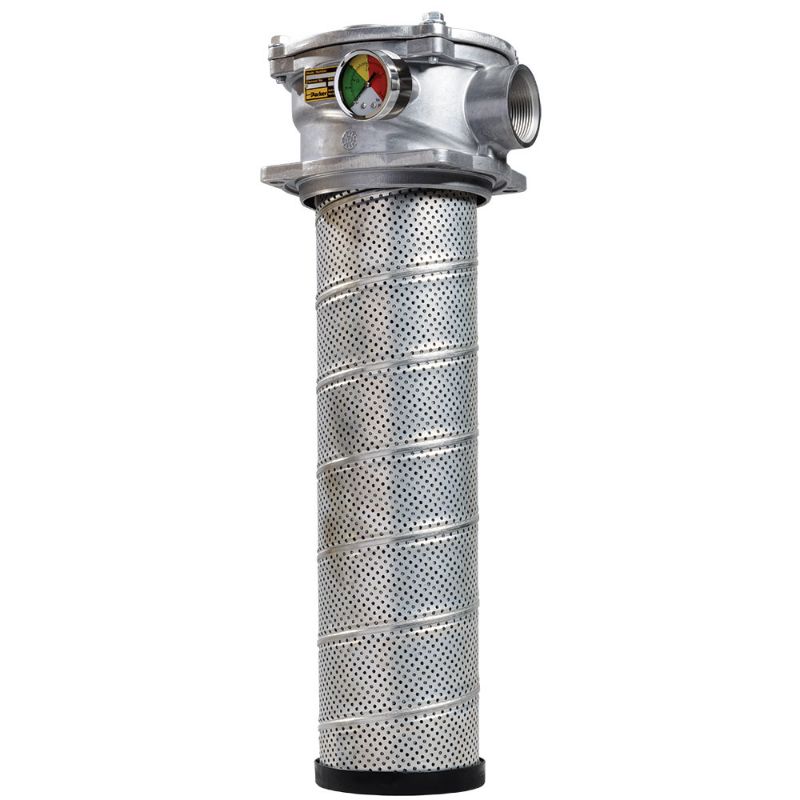

Parker GLF3210QBGIS241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF3210QBGIS241

$456.45

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Options	None	Filter Element Type	Cartridge
Mounting Type	Tank Mounted	Maximum Operating Temperature	225 °F
Weight	8 lb	Port Type	SAE-24
Pressure Rating	150 psi	Bypass Valve Pressure Rating	35 psi
Indicator Type	Tri-color Pressure Gauge	Housing Material	Cast Aluminum Alloy
Indicator Pressure Setting	28 psi	Flow Rate	225 Gal/min
Compatible Element	945900Q	Seal Material	Nitrile
Options	None	Filter Element	10Q Microglass
Port Connection Type	SAE-24	Bypass Valve (psi)	35
Indicator Type	Tri-color Pressure Gauge	Flow Rate (gpm)	225
