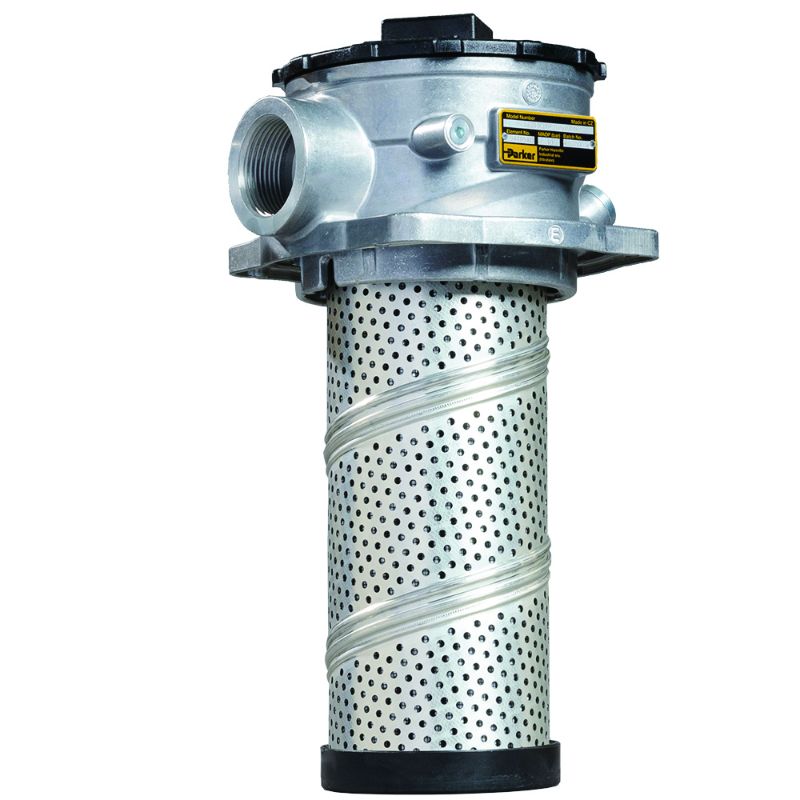

Parker GLF2105QBPIS161 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF2105QBPIS161

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Filter Element Type	05Q Microglass	Maximum Operating Temperature	107 °C
Mounting Type	Tank Mounted	Port Type	SAE-16
Indicator Type	Port Plugged	Pressure Rating	150 psi
Flow Rate	265 L/min	Bypass Valve Pressure Rating	35 psi
Housing Material	Cast Aluminum Alloy	Weight	3.18 kg
Indicator Pressure Setting	1.9 bar	Compatible Element	946432Q
Seal Material	Nitrile	Options	None
Filter Element	05Q Microglass	Port Connection Type	SAE-16
Indicator Type	Port plugged	Flow Rate (gpm)	70
Bypass Valve (psi)	35

Product resources

Literature and Reference Materials
