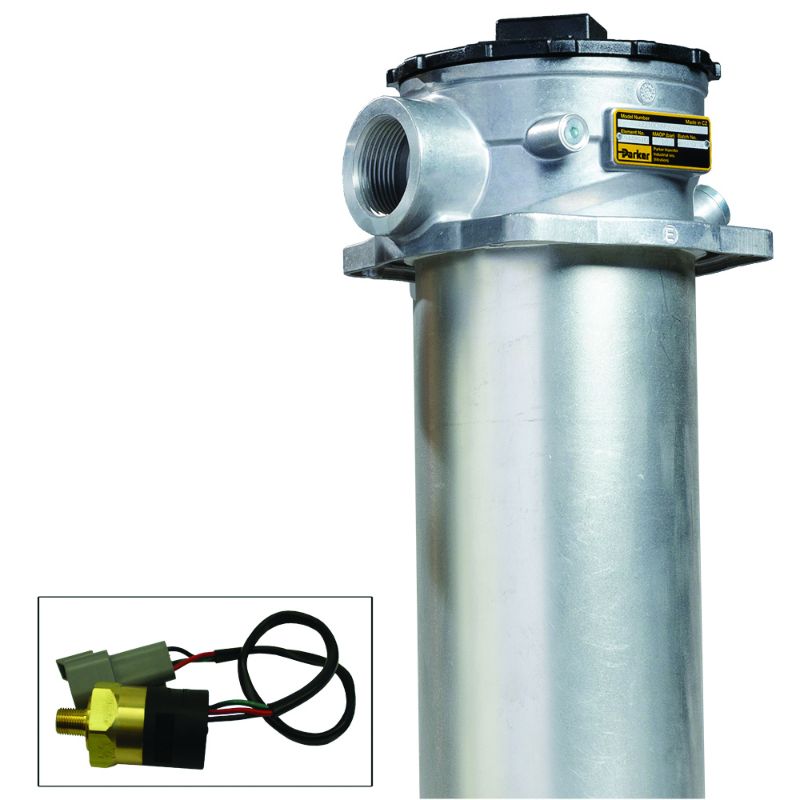

Parker GLF2102QVSIS16D - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF2102QVSIS16D

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	02Q Microglass
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Seal Material	Fluorocarbon
Mounting Type	Tank Mounted	Pressure Rating	150
Maximum Operating Temperature	225	Port Type	SAE-16
Weight	4	Bypass Valve Pressure Rating	35
Indicator Type	Pressure Switch	Housing Material	Cast Aluminum Alloy
Options	Drop Tube	Flow Rate	208
Indicator Pressure Setting	28	Compatible Element	946456Q
Seal Material	Fluorocarbon	Filter Element	02Q Microglass
Port Connection Type	SAE-16	Bypass Valve (psi)	35
Options	Drop Tube	Flow Rate (gpm)	55
Indicator Type	Pressure Switch
