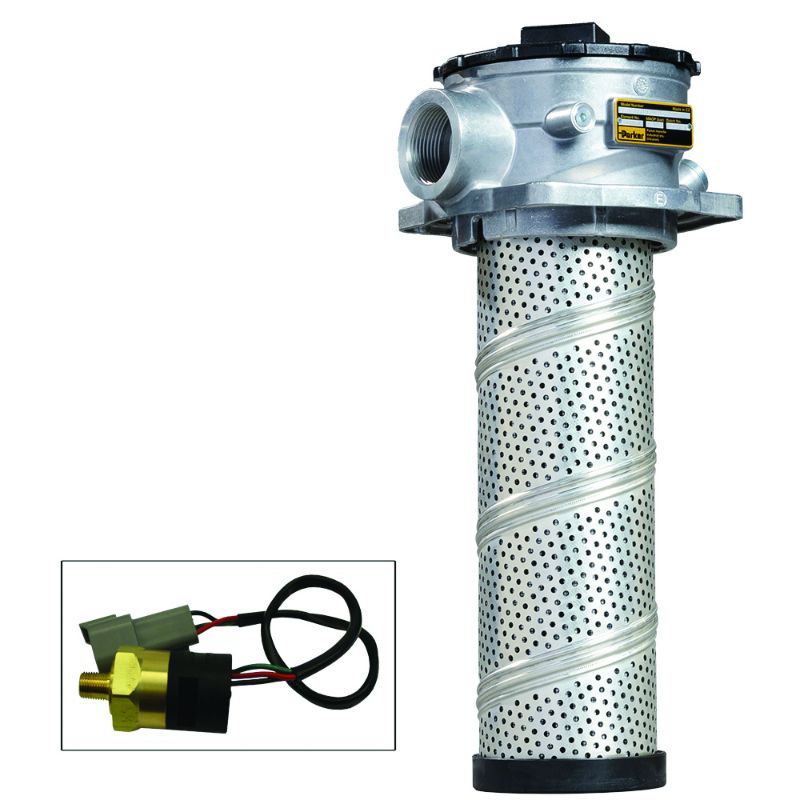

Parker GLF2102QVSI2S241 - Low Pressure Tank Top Filters GLF Series

Parker's GLF Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 230 GPM/871 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. GLF2102QVSI2S241

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	02Q Microglass
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Seal Material	Fluorocarbon	Mounting Type	Tank Mounted
Pressure Rating	150	Maximum Operating Temperature	225
Weight	4	Flow Rate	265
Bypass Valve Pressure Rating	35	Indicator Type	Pressure Switch
Housing Material	Cast Aluminum Alloy	Port Type	Dual SAE-24
Indicator Pressure Setting	28	Compatible Element	946456Q
Seal Material	Fluorocarbon	Options	None
Filter Element	02Q Microglass	Bypass Valve (psi)	35
Flow Rate (gpm)	55	Indicator Type	Pressure Switch
Port Connection Type	Dual SAE-24

Product resources

Literature and Reference Materials
