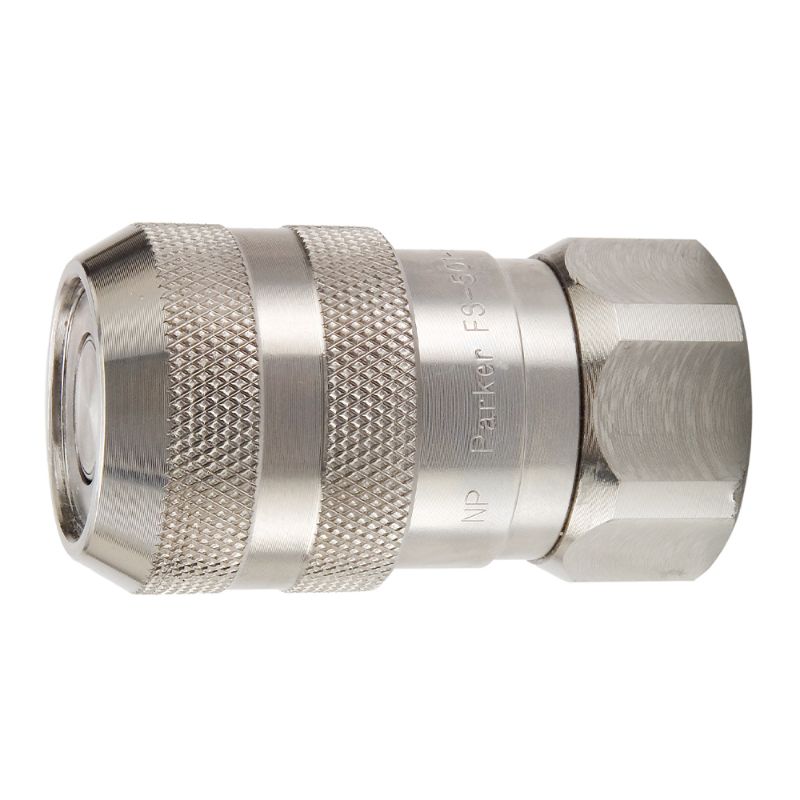

Parker FS-1001-16FB - Flat Face, Chemical Compatible Quick Couplings - FS Series

Parker's stainless steel non-spill, flat face hydraulic couplers are ideal for use in applications where chemical or corrosive fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FS-1001-16FB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	400	Division	Quick Coupling Division
Valve Type	Non-spill	Hex Size	1.87
Product Type	Push to Connect	Flow Rate	50
Seal Material	Fluorocarbon	Application	Fluid and chemical transfer
Minimum Operating Temperature	-15	Maximum Operating Pressure	2000
Body Material	316 Stainless Steel	Connection Type	Female BSPP
Coupling Half	Female Coupler	Body Size (inch)	1
Connection Thread Size (inch)	1 - 11 1/2
