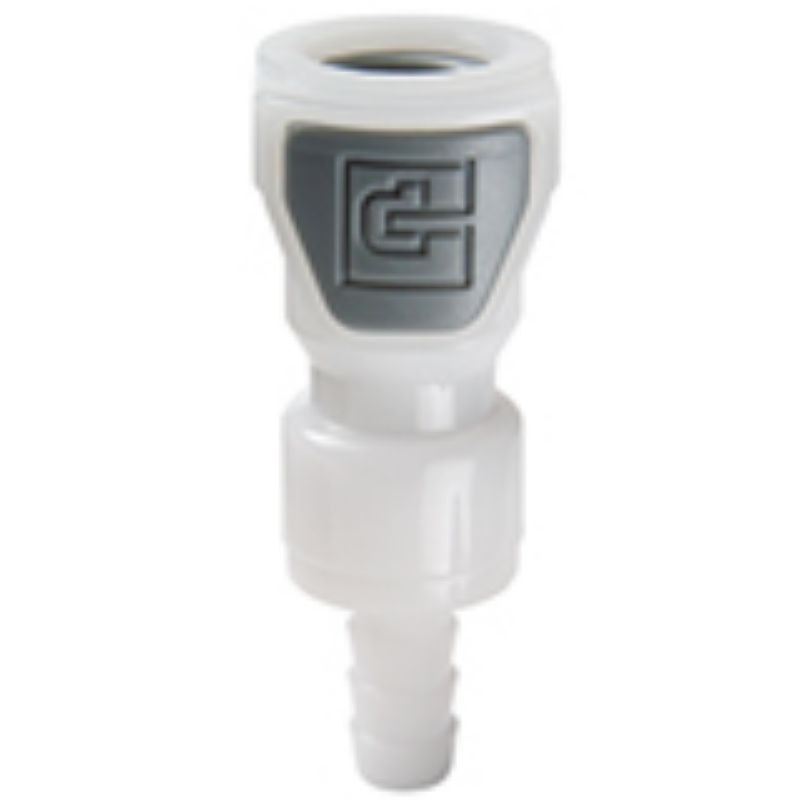

Parker PPA-251-6HB - PPA Series Couplers - OBSOLETE

Note: This product is no longer available from Parker. Parker's thermoplastic quick couplers and nipples are ideal for use across a broad range of low pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PPA-251-6HB

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Maximum Operating Temperature	180
Lock Type	Plastic push button latch	Media	Air, fluids and chemicals
Minimum Operating Temperature	-40	Coupling Half	Coupler
Body Material	Delrin® Acetal	Application	Vacuum
Body Size	1/4	Valve Type	Poppet
Spring Material	Stainless Steel	Maximum Operating Pressure	120
Connection Type	Hose Barb	Sleeve Type	Push to Connect
Seal Material	Nitrile	Flow Rate	0.5
Connection Tube I.D. (inch)	3/8	Valve Style	Poppet

Product resources

Literature and Reference Materials

Catalog 3800 Quick Coupling Products (PDF)
